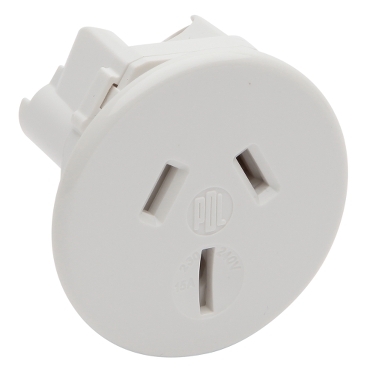

PDL General Accessories Round Socket 15A 230-240VAC 2-3.5mm Panel, White
Item Number: PDL193/15/2
Datasheet
Close
Specifications
Design
Range of product
PDL General Accessories
Product or component type
socket
Colour tint
white
Surface finish
glossy
Physical
Quantity per set
- set of 100
- set of 10
Type of packing
- bag
- carton
[in] rated current
15 A
[ue] rated operational voltage
230/240 V AC 50 Hz
Socket number
3
Installation direction
vertical
Mounting support
panel - thickness: 2-3.5 mm
Ambient air temperature for operation
-10...40 °C
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
- plastic
- PC (polycarbonate)
Others
Commercial status history
- SESA65410
- Tue Nov 14 19:10:00 EST 2023
- From Import Local
- From 19 to 19
Package 1 bare product quantity
1
Network number of phases
1 phase
Diameter
43.8 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
26.1 cm
Package 1 width
4.3 cm
Package 1 length
4.3 cm
Package 1 weight
32.84 g
