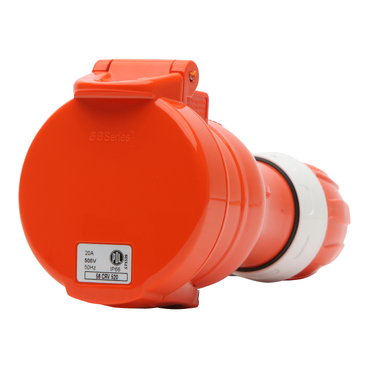

56 Series Cord Connector Extension Socket 20A 500V 5-Round Pin IP66, Orange

Home ProductsIndustrial56 SeriesCord Connector Extension Socket

56 Series Cord Connector Extension Socket 20A 500V 5-Round Pin IP66, Orange

Item Number: PDL56CRV520

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

56 Series™

Product or component type

socket

Colour tint

orange

Surface finish

gloss

Physical

Rated current

20 A

[ue] rated operational voltage

500 V

Pin number

5

Ip degree of protection

IP66

Ambient air temperature for operation

-40...55 °C

Quantity per set

set of 4

Type of packing

carton

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

PBT (polybutylene terephthalate)

Device composition

round pin

Others

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

3 phases

Cable cross section

7...16 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.346 kg
Show all specifications
