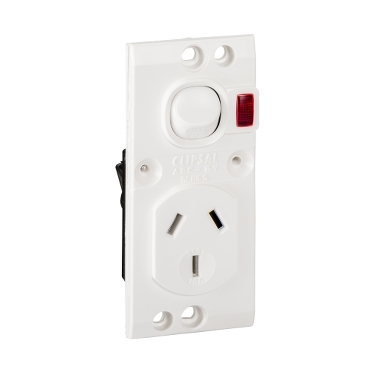

Medilec Single Switched Socket Module "O" Style, 10A, Shutter and Neon | White Electric
Item Number: ML/ABC15VNM-WE
Datasheet
Close
Specifications
Design
Range of product
Medilec ESP Series
Product or component type
switched socket
Product brand
Clipsal
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
- rocker
- switch
Fixing mode
by screws
Local signalling
indicator light
Mounting position
vertical
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Height
74 mm
Width
45 mm
Standards
- AS/NZS 3190
- AS/NZS 3003
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.93 kg
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
