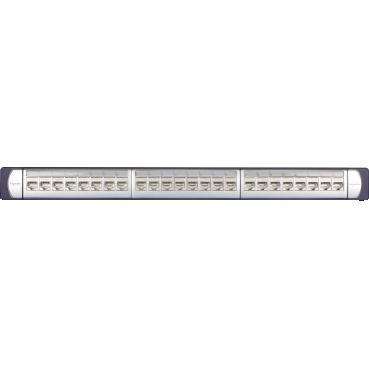

Actassi Patch Panel Category 6A, 10 Gang, FTP, 24-Port, Loaded
Item Number: ACTPP6ATGS24NSS
Datasheet
Close
Specifications
Design
| Range | Actassi |
|---|---|
| Product or component type | patch panel |
| Product compatibility | standard 19" cabinet/rack |
Physical
| Device presentation | loaded |
|---|---|
| Provided equipment | with RJ45 connectors |
| [in] rated current | 1.5 A |
| Communication network category | 6A |
| Contact resistance | 20 µOhm |
| Insulation resistance | >= 10 MOhm |
| Ambient air temperature for operation | -10...50 °C |
| Ambient air temperature for storage | -20...60 °C |
| Relative humidity | 0...93 % |
| Standards | TIA/EIA-568-B |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1303001EN |
| Eu rohs directive | Compliant |
