C-Bus SpaceLogic Relay voltage free 4 channel, DIN rail mounted, selectable inbuilt C-Bus power supply

Home ProductsSmart HomeC-BusSpaceLogic Relay voltage free

C-Bus SpaceLogic Relay voltage free 4 channel, DIN rail mounted, selectable inbuilt C-Bus power supply

Item Number: 5504RVF

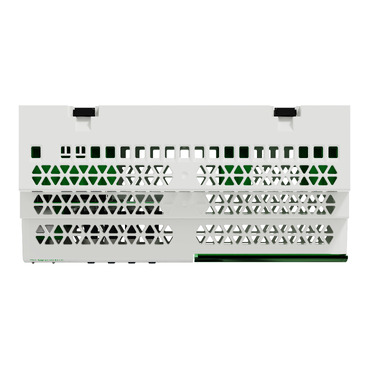

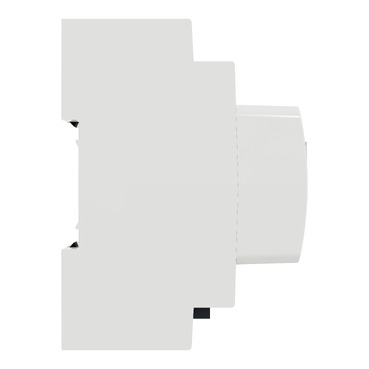

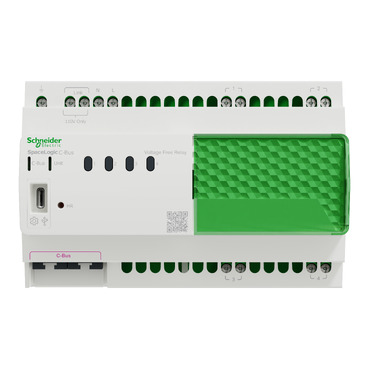

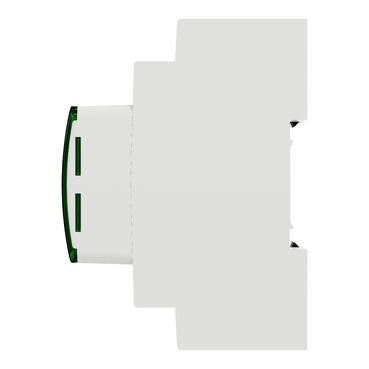

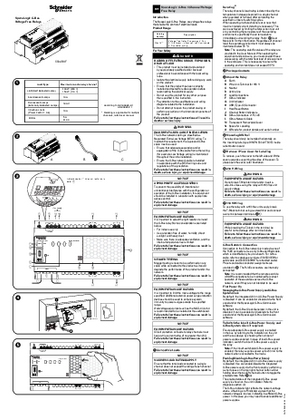

Datasheet

Product Dimensions

Width icon

Width144 mm

Height icon

Height92 mm

Depth icon

Depth63 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

SpaceLogic C-Bus

Product brand

Schneider Electric

Range

C-Bus

Product or component type

relay

Device application

switching loads

Physical

Rated voltage

  • 220...240 V AC 50 Hz
  • 100...120 V AC 60 Hz

Local signalling

multi-colour LED

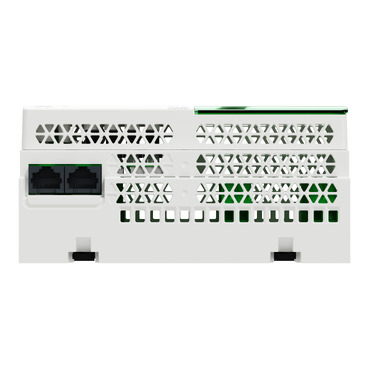

Connector type

2 x RJ45 in parallel

Load type

  • LED lamp: 400 W, 230 V
  • LED lamp: 150 W, 110 V
  • incandescent lamps: , 10 A
  • fluorescent lamps: , 16 A
  • motor: , 5 A
  • inductive load: , 10 A

[ie] rated operational current

20 mA at 20...36 V

Inrush current

  • 800 A during 0.2 ms
  • 165 A during 20 ms

Number of channels

4

Width

144 mm

Height

92 mm

Depth

63 mm

Connections - terminals

screw terminal block

Connections - terminals

RJ45 connector

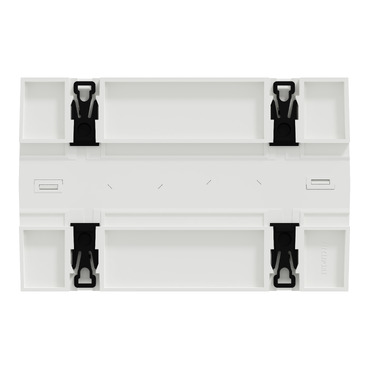

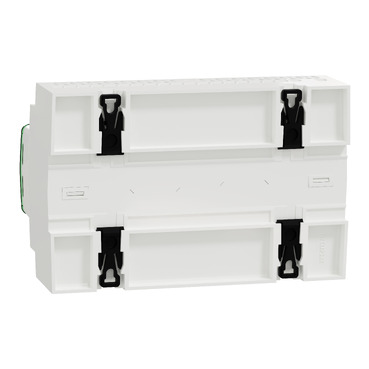

Device mounting

DIN rail

Net weight

361 g

Ip degree of protection

IP20

Device presentation

complete device

Ambient air temperature for operation

-5...55 °C

Relative humidity

10...93 %

Product certifications

  • CE
  • RCM
  • UKCA

Standards

  • AS/NZS 60669.2.1
  • IEC 60669-2-1
  • IEC 60669-1

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2408008EN

Circularity profile

ENVEOLI2408008EN

Others

Commercial status history

  • SESA59909
  • Wed Sep 11 04:39:00 EDT 2024
  • From Unitary Local
  • From 06 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

[uc] control circuit voltage

  • 230 V AC 50 Hz +/- 10 %
  • 110 V AC 60 Hz +/- 10 %

Maximum switching current

200 mA

Operational power in w

  • 400 W
  • 150 W

[us] rated supply voltage

27...35 V DC

Minimum switching capacity

12 V at 100 mA DC

Number of outputs

4 load switching

Number of modules

8

Operating rate

6 operations/minute

Minimum switching current

100 mA

Minimum switching voltage

12 V

Operating position

horizontal position

Number of contacts as normally open contact

4

Contact terminal arrangement

separate

With led indication

true

Control button type

push-button

Forced guided contact present

false

Control circuit type

DC

Contacts type and composition

NO

Tightening torque

0.6 N.m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.2 cm

Package 1 width

9.6 cm

Package 1 length

15.4 cm

Package 1 weight

468 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

22.5 cm

Package 2 width

17.8 cm

Package 2 length

51 cm

Package 2 weight

5.2 kg

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

215.87422902471593

Global warming ; total life cycle​

216 kg CO2 eq.

Minimum percentage of recycled plastic content

0
