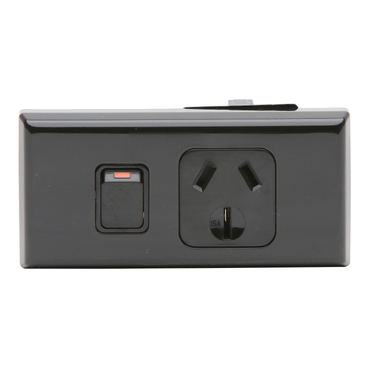

600 Series Switched Socket Worktop, 15A

600 Series Switched Socket Worktop, 15A | Black

Item Number: PDL698/15BK

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

600 Series

Product or component type

switched socket

Colour tint

white

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Control type

rocker

Installation direction

horizontal

Length

97 mm

Height

45 mm

[ue] rated operational voltage

230/240 V 50 Hz

Device mounting

surface

Number of gangs

1 gang

Fixing center

80 mm

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 5

Type of packing

carton

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Dimension type

external

Cable cross section

3 x 2.5...2.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

5 cm

Package 1 length

10 cm

Package 1 weight

0.07 kg
