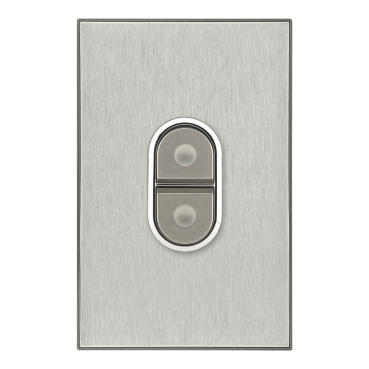

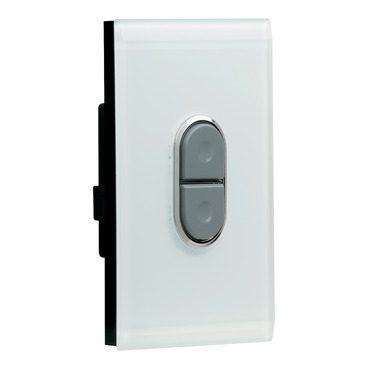

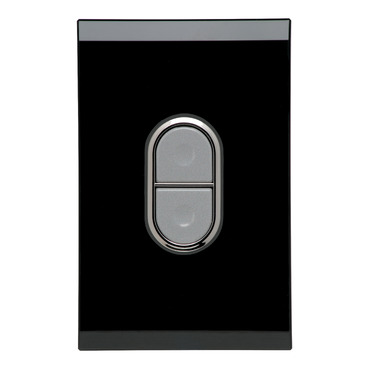

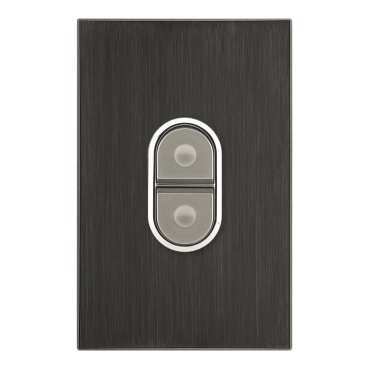

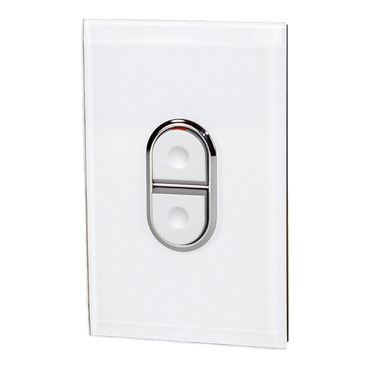

Saturn Series, Flush Switch, 1 Gang, 250V, AC,45A, Push Button

Saturn Series, Flush Switch, 1 Gang, 250V, AC,45A, Push Button Espresso Black

Item Number: 4061/45-EB

Cooker switch assembly. Single-pole switch. Assembled with plate. Clipsal Saturn Horizon. Colour: Horizon Silver Rated current: 45A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width75 mm

Height icon

Height116 mm

Embedding depth icon

Embedding depth23 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Saturn Series 4000

Product brand

Clipsal

Physical

Device presentation

basic element

Number of poles

1

Device mounting

flush

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

45 A

Marking

without marking

Fixing mode

by screws

Height

116 mm

Width

75 mm

Depth

37 mm

Embedding depth

23 mm

Switch function

1-pole

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

9.5 cm

Package 1 length

12.3 cm

Package 1 weight

256 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

12.6 cm

Package 2 width

10 cm

Package 2 length

36.6 cm

Package 2 weight

1.398 kg
