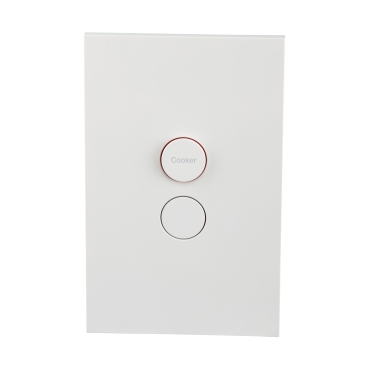

Saturn Zen Cooker Switch Single Pole 45A, 250V

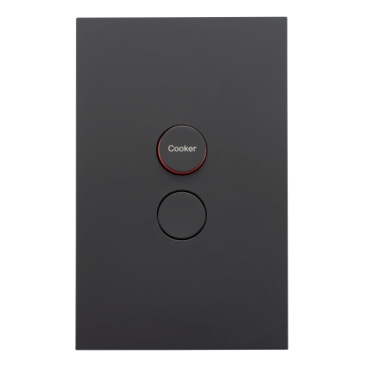

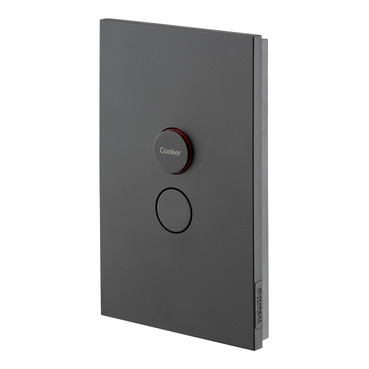

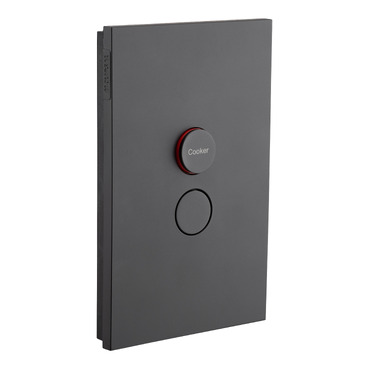

Saturn Zen Cooker Switch Single Pole 45A, 250V | Zen Black

Item Number: Z4061/45-ZB

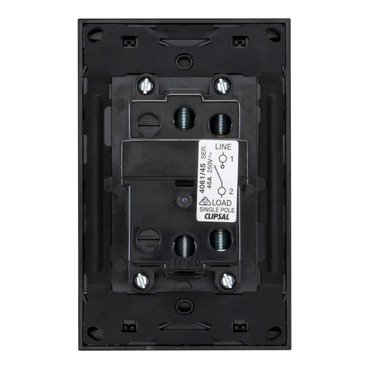

Cooker switch assembly. Single-pole switch. Assembled with plate. Clipsal Saturn Zen. Colour: Zen White Rated current: 45A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width75 mm

Height icon

Height116 mm

Embedding depth icon

Embedding depth23 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal

Product brand

Clipsal

Range of product

Saturn

Product or component type

switch

Physical

Number of gangs

1 gang

Width

75 mm

Height

116 mm

[in] rated current

45 A

Switch function

1-pole 1-way

Embedding depth

23 mm

Number of rocker

1

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111024EN

Circularity profile

ENVEOLI110713EN

Others

Commercial status history

  • SESA301466
  • Mon Jan 06 17:48:00 EST 2025
  • From Import Local
  • From 14 to 19

Package 1 bare product quantity

1

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Main colour tint

zen white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7 cm

Package 1 width

9 cm

Package 1 length

11.6 cm

Package 1 weight

0.24 kg

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Minimum percentage of recycled plastic content

0
