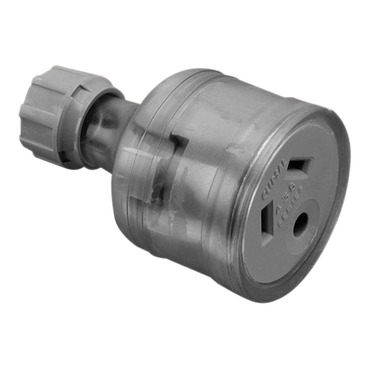

Standard Series Rewireable Socket Cord Extension 10A, 1mm², Ordinary Duty Flex

Home ProductsSwitches and SocketsStandard SeriesRewireable Socket Cord Extension

Standard Series Rewireable Socket Cord Extension 10A, 1mm², Ordinary Duty Flex | White Electric

Item Number: 438L-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product or component type

socket-outlet

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Outlet standard description

pin earth

Quantity per set

set of 1

Marking

without marking

Local signalling

without light indicator

[in] rated current

10 A

[ue] rated operational voltage

250 V AC

Depth

71 mm

Standards

AS/NZS 3112|AS 3100|AS 3109|AS/NZS 3122:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1605009

Circularity profile

N/A

Material

Material

PVC (polyvinyl chloride)

Others

Package 1 bare product quantity

1

Cover type

complete housing

Diameter

43 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5 cm

Package 1 width

10 cm

Package 1 length

18 cm

Package 1 weight

60 g
