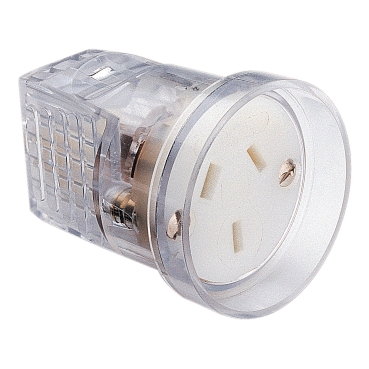

Standard Series Socket Cord Extension 10A, suit 1mm² Ordinary Duty | TR
Item Number: 1438-TR
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product or component type
socket-outlet
Product brand
Clipsal
Sustainable offer status
Green Premium product
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
[in] rated current
10 A
[ue] rated operational voltage
250 V AC
Depth
62 mm
Standards
AS/NZS 3112|AS 3100|AS 3109|AS/NZS 3122:approval number S/1
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP1605009
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Cover type
complete housing
Diameter
41 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 cm
Package 1 width
7 cm
Package 1 length
10 cm
Package 1 weight
48.3 g
