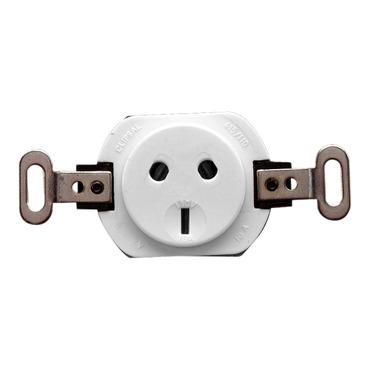

Standard Series Unswitched Socket Single, 110V, 10A, 3 PIN, 2 Round Live PINS | WE
Item Number: 415/110-WE
Datasheet
Close
Specifications
Design
Product or component type
socket-outlet
Product brand
Clipsal
Sustainable offer status
Green Premium product
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
Device mounting
flush
Fixing mode
by screws
[in] rated current
10 A
[ue] rated operational voltage
110 V AC
Depth
27 mm
Length
94 mm
Width
42 mm
Fixing center
84 mm
Standards
AS/NZS 3112|AS 3100|AS 3109|AS/NZS 3122:approval number S/1
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Cover type
complete housing
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.7 cm
Package 1 width
4.2 cm
Package 1 length
9.4 cm
Package 1 weight
0.08 kg
