Specifications
Design

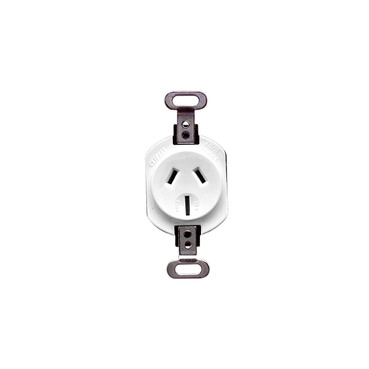

Product or component type
socket-outlet
Product brand
Clipsal
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
Device mounting
flush
Fixing mode
by screws
[in] rated current
15 A
[ue] rated operational voltage
250 V AC
Depth
27 mm
Length
94 mm
Width
42 mm
Fixing center
84 mm
Standards
AS/NZS 3112|AS 3100|AS 3109|AS/NZS 3122:approval number S/1
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Cover type
complete housing
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.8 cm
Package 1 width
5 cm
Package 1 length
9.8 cm
Package 1 weight
50 g
