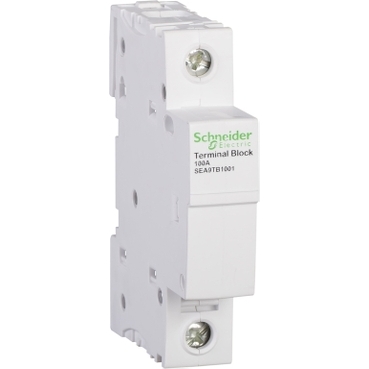

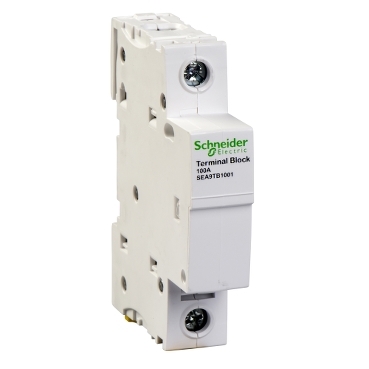

Acti9 Terminal block 100A, 1P

Home ProductsCircuit ProtectionActi9Terminal block

Acti9 Terminal block 100A, 1P

Item Number: SEA9TB1001

This Acti9 Isobar B accessory is a terminal block. It is a 1 pole, the rated current is up to 100A. The product width is 18mm. The device application is connection.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

terminal block

Device application

connection

Physical

Range compatibility

  • Acti 9 Acti9 DB TNA chassis
  • Acti 9 Acti9 DB PEV chassis
  • Acti 9 distribution board

[ue] rated operational voltage

220/240 V

[ie] rated operational current

125 A

Width

18 mm

Cable stiffness

  • flexible 35-35 mm²
  • solid 50-50 mm²

Ambient air temperature for storage

-40...85 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1602010EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

52

Package 3 bare product quantity

832

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Network type

AC

Network frequency

50/60 Hz

[ui] rated insulation voltage

500 V

Poles description

1P

[uimp] rated impulse withstand voltage

6 kV

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.000 cm

Package 1 width

7.000 cm

Package 1 length

9.000 cm

Package 1 weight

77.500 g

Unit type of package 2

S02

Number of units in package 2

52

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.290 kg

Unit type of package 3

P12

Number of units in package 3

832

Package 3 height

45.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

80.640 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0

Carbon footprint of the manufacturing phase [a1 to a3]

0 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
