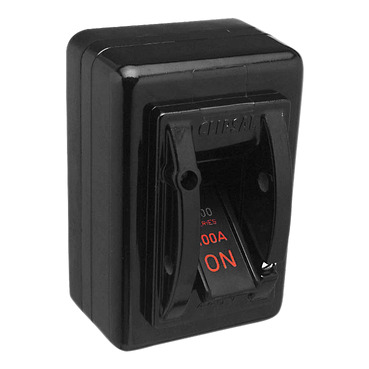

Specifications
Design
Product brand
Clipsal
Physical
Device presentation
basic element
Number of poles
3
Local signalling
without
Rated current
100 A
Marking
without marking
Mounting support
panel
Switch function
3-pole
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
11.6 cm
Package 1 width
12.0 cm
Package 1 length
17.0 cm
Package 1 weight
1141.3 g
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Documents & downloads
hide showFilter items
-
All
-
Specification Guide
Frequently Asked Questions
What is the internal wiring connection of Motor Mechanism Module (MT100 to MT630) for Compact NS <630 MCCB range.
Hide ShowRefer the attachment for the internal wiring connection of Motor Mechanism Module (MT100 to MT630) for Compact NS < 630 Moulded Case Circuit Breaker (MCCB).
How do you select the input type (analog, thermocouple, PT100, RTD) on the Zelio REG24 Temperature Controllers?
Hide Show
Issue:
Selection of input type on Zelio REG24 Temperature Controllers?
Product Line:
Relays and Timers
Environment:
Zelio Speed, Frequency, & Temperature Control Relays
Resolution:
Accessing the parameter
Value: Input Type
1 (PT 100 Ω )
2 (J)
3 (K)
4 (R)
5 (B)
6 (S)
7 (T)
8 (E)
12 (N)
13 (PL-2)
16 (1 VDC...5 VDC)
16 (4 mA...20 mA)
Selection of input type on Zelio REG24 Temperature Controllers?
Product Line:
Relays and Timers
Environment:
Zelio Speed, Frequency, & Temperature Control Relays
Resolution:
Accessing the parameter
1. Press the SEL key until P is displayed.
2. Press the Down Arrow key until P-n2 is displayed.
3. Press the SEL key.
6. Change the value from the default to one of the following using the Arrow keys.
Value: Input Type
1 (PT 100 Ω )
2 (J)
3 (K)
4 (R)
5 (B)
6 (S)
7 (T)
8 (E)
12 (N)
13 (PL-2)
16 (1 VDC...5 VDC)
16 (4 mA...20 mA)
