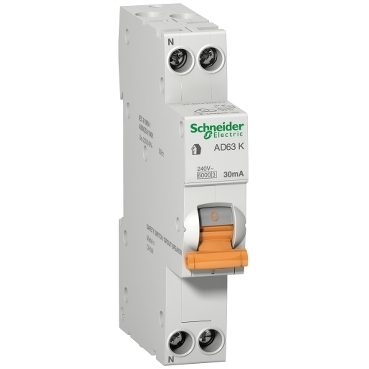

Domae Earth Leakage Circuit Breaker 6A, 1P+N C, 30mA, 6000A, Grey

Item Number: DOM12529

1 PCE 1

Product DOM12529 is replaced by R9D06606
View here.

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height93 mm

Depth70 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480638633	-

Specifications

Design

Range	Domae
Device application	distribution
Range of product	Domae
Product or component type	residual current breaker with overcurrent protection (RCBO)

Physical

[in] rated current	6 A at 30 °C
[ue] rated operational voltage	230/240 V AC 50 Hz
Electrical insulation class	class II
Control type	toggle
Local signalling	ON/OFF indication
Mounting support	DIN rail
Height	93 mm
Width	18 mm
Depth	70 mm
Net weight	136 g
Mechanical durability	20000 cycles
Connections - terminals	screw clamp terminal (upstream) 1-16 mm² rigid screw clamp terminal (upstream) 1-16 mm² flexible screw clamp terminal (downstream) 1-10 mm² rigid screw clamp terminal (downstream) 1-10 mm² flexible
Wire stripping length	14 mm for upstream connection 11 mm for downstream connection

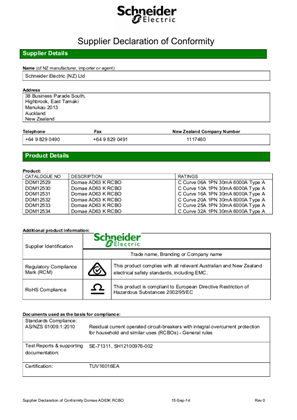

Standards	AS/NZS 61009 IEC 61009-1
Ambient air temperature for operation	-25...55 °C
Ambient air temperature for storage	-30...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1007002EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	72
Package 4 bare product quantity	864
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Product name	AD63 K
Poles description	1P + N
Neutral position	left
Earth-leakage protection class	type A
Suitability for isolation	yes
Network type	AC
Network frequency	50 Hz
Trip unit technology	thermal-magnetic
Curve code	C
Magnetic tripping limit	5...10 x In
Earth-leakage sensitivity	30 mA
Earth-leakage protection time delay	instantaneous
Breaking capacity	6000 A Icn at 230/240 V AC 50 Hz
Limitation class	3
[ui] rated insulation voltage	400 V AC 50 Hz
Contact position indicator	yes
Comb busbar and distribution block compatibility	YES
9 mm pitches	2
Provision for padlocking	padlockable
Locking options description	by padlocks
Tightening torque	2 N.m upstream 2 N.m downstream
Earth-leakage protection	integrated
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.8 cm
Package 1 width	7.2 cm
Package 1 length	9.25 cm
Package 1 weight	141 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	1.8 cm
Package 2 width	7.2 cm
Package 2 length	9.25 cm
Package 2 weight	1692 g
Unit type of package 3	S03
Number of units in package 3	72
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	10.152 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	22 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.2892045977
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0406447356
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0083563839
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	20.3028353659
Carbon footprint of the use phase [b2, b3, b4, b6]	20 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.3528997701
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	21.9939408532
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
