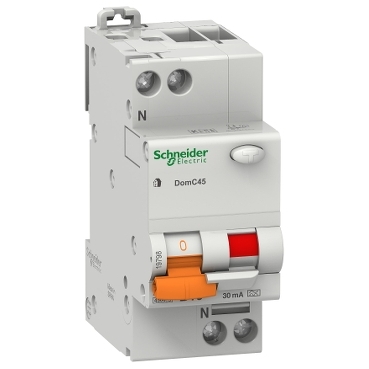

Domae RCBO 32A, 1P+N C, 30mA, 6kA, Grey

Item Number: DOM19806

1 PCE 1

Product DOM19806 is replaced by R9D08632
View here.

Where To Buy

Datasheet

Download

Product Dimensions

Width36 mm

Height81 mm

Depth72 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480342875	-
6	BB1	13606480342872	-
54	S03	43606480342873	-

Specifications

Design

Range	Domae
Device application	distribution
Range of product	Domae
Product or component type	residual current breaker with overcurrent protection (RCBO)

Physical

[in] rated current	32 A
[ue] rated operational voltage	230 V AC 50 Hz conforming to IEC 61009-1
Electrical insulation class	class II
Control type	toggle
Local signalling	ON/OFF indication
Mounting support	rail
Height	81 mm
Width	36 mm
Depth	72 mm
Net weight	0.125 kg
Mechanical durability	20000 cycles
Electrical durability	10000 cycles 230 V AC 50 Hz conforming to IEC 61009-1
Connections - terminals	tunnel type terminals1-10 mm² flexible tunnel type terminals1-16 mm² rigid
Wire stripping length	15 mm
Standards	IEC 61009-1 AS/NZS 61009.1
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-5...60 °C
Ambient air temperature for storage	-40...60 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP111021EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Poles description	1P + N
Neutral position	left
Earth-leakage protection class	type A
Suitability for isolation	yes
Network type	AC
Network frequency	50 Hz
Trip unit technology	thermal-magnetic
Curve code	C
Magnetic tripping limit	5...10 x In
Earth-leakage sensitivity	30 mA
Earth-leakage protection time delay	instantaneous
Breaking capacity	6000 A Icn at 230 V AC 50 Hz conforming to IEC 61009-1
Rated breaking and making capacity	Idm 3000 A at 230 V AC 50 Hz conforming to IEC 61009-1
Limitation class	3
[ui] rated insulation voltage	400 V AC 50 Hz
Surge current	250 A
Contact position indicator	yes
9 mm pitches	4
Tightening torque	3.5...3.5 N.m upstream 3.5...3.5 N.m downstream
Earth-leakage protection	with
Pollution degree	2
Overvoltage category	III
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.5 cm
Package 1 width	3.6 cm
Package 1 length	8.5 cm
Package 1 weight	208 g
Unit type of package 2	BB1
Number of units in package 2	6
Package 2 height	9.5 cm
Package 2 width	10 cm
Package 2 length	25.5 cm
Package 2 weight	1.318 kg
Unit type of package 3	S03
Number of units in package 3	54
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	12.349 kg
Total lifecycle carbon footprint	45 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.9230724029380877
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.030694732423924377
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0027768982161594964
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	38.545061611374415
Carbon footprint of the use phase [b2, b3, b4, b6]	39 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.03514610703043021
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	44.662161594963244
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	678d3ecc-6f24-42c7-bb11-218205429e33
Pvc free	Yes
Take-back	No
Warranty (in months)	18
