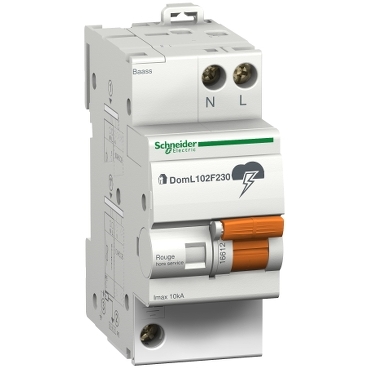

Domae Surge Arrester without Accessories Quick, PF10 kA, 1P+N

Home ProductsCircuit ProtectionDomaeSurge Arrester without Accessories

Domae Surge Arrester without Accessories Quick, PF10 kA, 1P+N

Item Number: 16693

Product 16693 is replaced by R9L40100
View here.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width32.5 mm

Height icon

Height90.7 mm

Depth icon

Depth72.1 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Domae

Range

DuoLine

Product or component type

surge arrester

Physical

[ue] rated operational voltage

230 V +/- 10 % AC 50/60 Hz

Local signalling

white/red flag

Mounting mode

clip-on

Mounting support

DIN rail

Height

90.7 mm

Width

32.5 mm

Depth

72.1 mm

Net weight

370 g

Connections - terminals

<ul><li>tunnel type terminal (L/N) 1 cable(s) 1-16 mm² rigid</li><li>tunnel type terminal (L/N) 1 cable(s) 1-10 mm² flexible</li><li>tunnel type terminal (ground) 6-25 mm² rigid</li><li>tunnel type terminal (ground) 6-16 mm² flexible with ferrule</li></ul>

Wire stripping length

13 mm

Standards

<ul><li>EN 61643-11:2012</li><li>IEC 61643-11:2011</li></ul>

Ik degree of protection

IK03 conforming to IEC 62262

Relative humidity

5...95 %

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...80 °C

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP071203EN

Circularity profile

ENVEOLI0712003

Others

Commercial status history

<ul><li>SESA301466</li><li>Wed Jun 12 04:32:00 EDT 2024</li><li>From Import Local</li><li>From 18 to 19</li></ul>

Package 1 bare product quantity

1

Device short name

Domae Quick PF

Poles description

1P + N

Remote signalling

without

Surge arrester type

electrical distribution network

Earthing system

<ul><li>TN-S</li><li>TT</li></ul>

Surge arrester class type

type 2

Surge arrester technology

MOV + GDT

Nominal discharge current

<ul><li>differential mode: 5 kA (L/N)</li><li>common mode: 10 kA (N/PE)</li></ul>

Maximum discharge current

<ul><li>common mode: 10 kA N/PE</li><li>differential mode: 10 kA L/N</li></ul>

[uc] maximum continuous operating voltage

<ul><li>common mode: 275 V N/PE</li><li>differential mode: 275 V L/N</li><li>common mode: 275 V L/PE</li></ul>

Response time

<= 25 ns

Maximum [up] voltage protection level

<ul><li>common mode <1.5 kV type 2 N/PE</li><li>differential mode <1.5 kV type 2 L/N</li></ul>

[ut] temporary overvoltage

<ul><li>337 V L/N 5 s withstand</li><li>1200 V N/PE 200 ms safe failure mode</li><li>442 V L/PE 5 s withstand</li></ul>

[ifi] follow current

0.1 kA common mode N/PE

Short-circuit current

6 kA

Disconnector device type

integrated circuit breaker - Icu 6 kA

9 mm pitches

4

Maximum residual current

1 mA

Tightening torque

2 N.m

Compatibility code

DOMAE_QUICK_PF

Quality labels

NF

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.2 cm

Package 1 width

12.5 cm

Package 1 length

15.3 cm

Package 1 weight

0.433 kg

Unit type of package 2

S03

Number of units in package 2

14

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

6.549 kg

Scip number

36bd7a2b-cb04-4d2b-af9d-7207cb06cb52

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Halogen content performance

Halogen free product

Halogen content performance

Halogen free product
