Datasheet

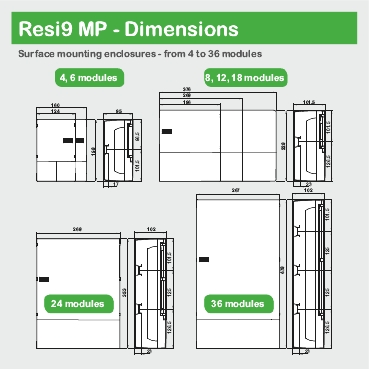

Product Dimensions
Widthoutside: 268 mm
Heightoutside: 228 mm
Embedding depth0 mm
Specifications

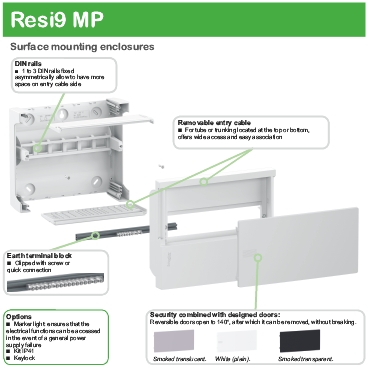

Design
Range
Range of product
Product or component type
Colour
- front face: white (RAL 9003)
- door: transparent (RAL 9003)
- door: white (RAL 9003)
Market segment
- residential
- small commercial
Warranty
Physical
Width
Height
Depth
Embedding depth
[in] rated current
Cable entry
- 1 bare flange
- 1 trunking flange
Standards
- IEC 60670-1
- IEC 60670-24
Ip degree of protection
Ik degree of protection
Ambient air temperature for operation
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
Others
Package 1 bare product quantity
Legacy weee scope
Weee label
Average percentage of recycled plastic content
Product name
Enclosure type
Number of 18 mm modules per row
Number of horizontal rows
Type of front cover
Enclosure mounting
9 mm pitches
Total number of 18 mm modules
Type of rail
Mounting plate description
Terminal block function
Number of terminal blocks
- 1 earth (screwed) with 8 outgoers
- 1 neutral (screwed) with 8 outgoers
Distribution block outgoers
- 1 x 16 mm² for earth
- 1 x 16 mm² for neutral
- 3 x 6 mm² for earth
- 3 x 6 mm² for neutral
- 4 x 10 mm² for earth
- 4 x 10 mm² for neutral
Enclosure material
- back part: technoplastic
- door: technoplastic
- front face: technoplastic
Internal depth
Targeted country
Fire resistance
- door: 650 °C
- back part: 650 °C
- front face: 650 °C
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Energy efficiency optimized
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled plastic content
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
End of life manual availability
Take-back
Warranty (in months)
Documents & downloads
hide show-
All
-
How to video
-
Environmental Disclosure
-
Installation Instruction
-

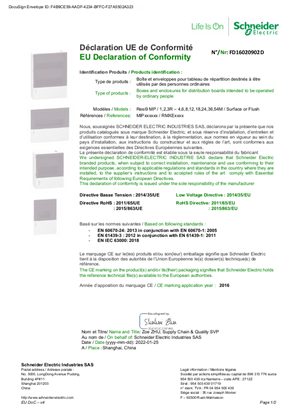

Declaration of Conformity
-
Declaration of Conformity (Sustainability)

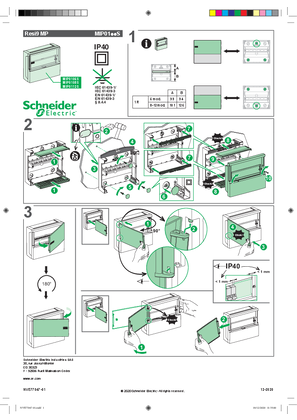

Resi9 MP_04_Entry cable management
