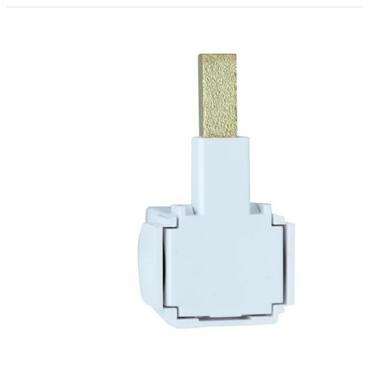

Resi MAX Connector 1P+N, set of 4

Item Number: RMXPC1

1 PCE 0

This Resi MAX connection accessory is a set of 4 1P+N connectors. The Ie rated operational current is 63A at 40°C. Its color is white (RAL 9003).

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480795831	-

Specifications

Design

Range	Resi MAX
Product or component type	connector

Physical

Quantity per set	set of 4
Mounting mode	horizontal
[ie] rated operational current	100 A at 40 °C
Connections - terminals	screw clamp terminals 1-35 mm² rigid
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206007EN
Eu rohs directive	Compliant

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Accessory / separate part category	connection accessory
Poles description	1P + N
Mounting location	bottom on tunnel type terminals
Tightening torque	4 N.m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.000 cm
Package 1 width	8.000 cm
Package 1 length	7.000 cm
Package 1 weight	48.000 g
Unit type of package 2	S02
Number of units in package 2	100
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	5.217 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.21139433489361004
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0062611653897160155
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.08429679872757068
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.3019522990108967
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	41a8b1b0-6424-4682-ac9c-98796ac87431
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
