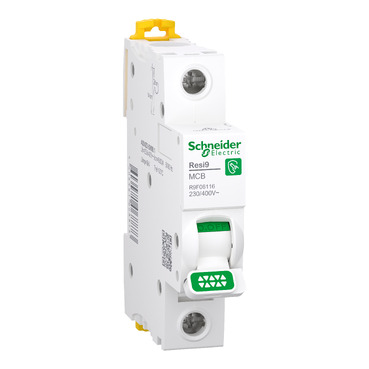

Resi9 Miniature circuit breaker (MCB) 1P, 16A, C curve, 6000A (AS/NZS 60898)

Home ProductsCircuit ProtectionResi9Miniature circuit breaker (MCB)

Resi9 Miniature circuit breaker (MCB) 1P, 16A, C curve, 6000A (AS/NZS 60898)

Item Number: R9F06116

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height85 mm

Embedding depth icon

Embedding depth44 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Resi9

Product or component type

miniature circuit-breaker

Device application

distribution

Physical

[in] rated current

16 A at 30 °C

[ue] rated operational voltage

230 V AC 50/60 Hz

Control type

toggle

Local signalling

ON/OFF indication

Height

85 mm

Width

18 mm

Depth

75 mm

Embedding depth

44 mm

Net weight

125 g

Mechanical durability

20000 cycles

Electrical durability

10000 cycles 230 V

Wire stripping length

14 mm for top or bottom connection

Connections - terminals

  • tunnel type terminals (top or bottom) 1-16 mm² flexible
  • tunnel type terminals (top or bottom) 1-25 mm² rigid

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2210011EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Commercial status history

  • SESA65410
  • Mon Sep 25 00:14:00 EDT 2023
  • From Import Local
  • From 02 to 08

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Poles description

1P

Number of protected poles

1

Network type

AC

Curve code

C

Breaking capacity

6000 A Icn at 230 V AC 50/60 Hz conforming to AS/NZS 60898

Suitability for isolation

yes

Quality labels

RCM

Network frequency

50/60 Hz

[ics] rated service breaking capacity

6000 A 100 % - 230 V AC 50/60 Hz

Magnetic tripping limit

5...10 x In

Limitation class

3

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

4 kV

Contact position indicator

yes

9 mm pitches

2

Total power losses

2.6 W

Power losses per pole

2.6 W

Provision for padlocking

padlockable

Tightening torque

2 N.m

Grid distance

45 mm

Heat dissipation

2.1...2.1 W

Pollution degree

2

Overvoltage category

III

Tropicalisation

severity B conforming to IEC 60068-2-30

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.2 cm

Package 1 width

8.5 cm

Package 1 length

1.8 cm

Package 1 weight

0.11 kg

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.6 cm

Package 2 width

9.6 cm

Package 2 length

23 cm

Package 2 weight

1.429 kg

Unit type of package 3

S03

Number of units in package 3

84

Package 3 height

30 cm

Package 3 width

38 cm

Package 3 length

30 cm

Package 3 weight

10.76 kg

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Global warming ; total life cycle​

5 kg CO2 eq.

Carbon footprint (kg.eq.co2 per cr, total life cycle)

4.695382

Minimum percentage of recycled plastic content

0
