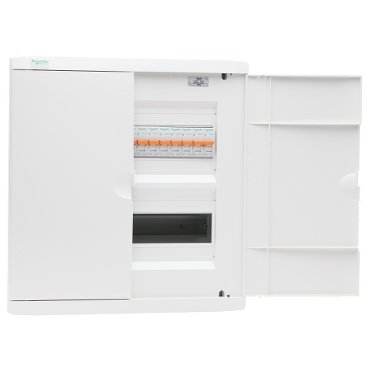

Superboard Series Bundle Pack DBF30 Board 30-Way Flush + 3x RCCB 40A + 9x MCB
Item Number: PDLDBF30BPDOM
This Superboards product is a distribution board. Its color is white with a gloosy surface finish. The rated current is 100A with a Ue rated operational current of 415V.
Datasheet
Close
Specifications
Design
Range of product
Superboard Series
Product or component type
distribution board
Colour tint
white
Surface finish
gloss
Physical
Installation direction
vertical
Rated current
100 A
[ue] rated operational voltage
415 V
Mounting mode
flush-mounted
Ip degree of protection
IP40
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
ABS (acrylonitrile butadiene-styrene)
Others
Commercial status history
SESA65410 | Fri Apr 05 01:46:00 EDT 2024 | From Import Local | From 18 to 19
Package 1 bare product quantity
1
[ui] rated insulation voltage
1000 V
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.5 cm
Package 1 width
38.5 cm
Package 1 length
40.5 cm
Package 1 weight
4.319 kg
