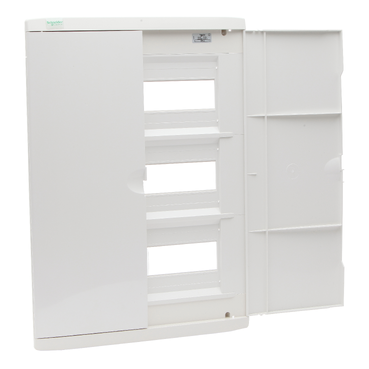

Superboard Series Distribution Board 45-Way 100A 415V Flush Mount ABS, Light Grey

Item Number: PDLDBF45

1 PCE 1

Product PDLDBF45 is replaced by R9HSB315F
View here.

Where To Buy

Datasheet

Download

Product Dimensions

Width376 mm

Height666 mm

Depth100 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175117916	-

Specifications

Design

Range of product

Superboard Series

Product or component type

distribution board

Colour tint

light grey

Surface finish

gloss

Physical

Installation direction

vertical

Width

376 mm

Height

666 mm

Depth

100 mm

Rated current

100 A

[ue] rated operational voltage

415 V

Mounting mode

flush-mounted

Quantity per set

set of 1

Type of packing

carton

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2306030EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

ABS (acrylonitrile butadiene-styrene)

Others

Legacy weee scope

Out

Package 1 bare product quantity

Outside of Europe

Weee label

N/A

[ui] rated insulation voltage

1000 V

Cable cross section

25 mm²

Cut-out dimensions

335 x 631 x 80 mm

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

10.5 cm

Package 1 width

38.5 cm

Package 1 length

67.0 cm

Package 1 weight

5.322 kg

Sustainable packaging

Packaging made with recycled cardboard

Yes

End of life manual availability

ENVEOLI2306030EN

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
Quick Start Guide
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Switchboard installation instructions, for residential distribution boards (Superboard Series)

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 154.8 KB

ZIP

Superboard Series, Declaration of Conformity

VERSION

1.0

DATE

07 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 279.4 KB

ZIP

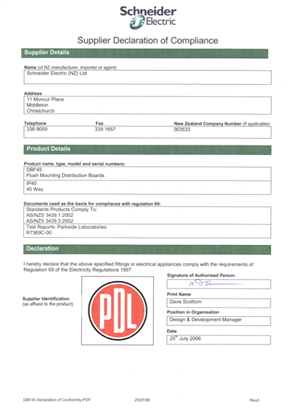

Superboard Series, DBF45, Declaration of Conformity

VERSION

1.0

DATE

07 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 664.2 KB

ZIP

PDLDBF45 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

PDLDBF45 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Frequently Asked Questions

What is the part number of the DBF45 and DBF60 door assembly?

Hide Show

You have to determine the panel design of the customer's existing board since there are two designs for the 45 and 60 way boards.

The very old 45 and 60 way boards had very thin top and bottom panels:

DBF45

DBF45
DBF60

DBF60

The new DBF45 and DBF60 have thicker panels on top and bottom:

R9HSB315F

R9HSB415F

Old board door assembly part number:
DBF45 --> PDLDBF45ASSY
DBF60--> PDLDBF60ASSY

https://www.pdl.co.nz/products/circuit-protection/superboard-series/door-assembly-45-way-surface-mount-light-grey-pdldbf45assy?itemno=PDLDBF45ASSY

https://www.pdl.co.nz/products/circuit-protection/superboard-series/door-assembly-60-way-surface-mount-light-grey-pdldbf60assy?itemno=PDLDBF60ASSY

New board door assembly part number:
DBF45--> PDLDBF45ASSYNT (Obsolete) --> replaced by Resi 9 R9ADA315
DBF60--> PDLDBF60ASSYNT (Obsolete) --> replaced by Resi 9 R9ADA415

https://www.pdl.co.nz/products/circuit-protection/resi9/door-assembly-3-row-45-ways-light-grey-r9ada315?itemno=R9ADA315

https://www.pdl.co.nz/products/circuit-protection/resi9/door-assembly-4-row-60-ways-light-grey-r9ada415?itemno=R9ADA415

Resi 9 Substitution list can be found on page 4/56:
https://www.pdl.co.nz/PDL/media/PDL-Leading-Edge-Technology/Resi9/Resi9%20PDFs/PDL-Resi9_technical-catalogue-20231025.pdf
