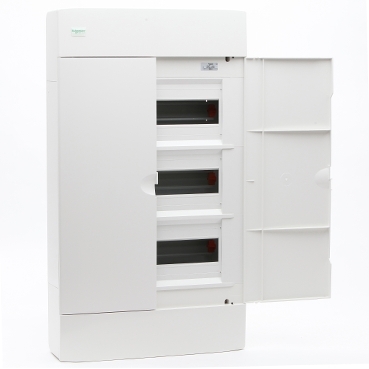

Superboard Series Distribution Board 45-Way 100A 415V Surface Mount ABS, Light Grey
Item Number: PDLDBS45
Product PDLDBS45 is replaced by R9HSB315S
View here.
Specifications
Design
Range of product
Superboard Series
Product or component type
distribution board
Colour tint
light grey
Surface finish
gloss
Physical
Installation direction
vertical
Width
376 mm
Height
666 mm
Depth
115 mm
Rated current
100 A
[ue] rated operational voltage
415 V
Mounting mode
surface mounted
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
ABS (acrylonitrile butadiene-styrene)
Others
Commercial status history
SESA65410 | Fri Apr 05 01:46:00 EDT 2024 | From Import Local | From 20 to 19
Package 1 bare product quantity
1
[ui] rated insulation voltage
1000 V
Cable cross section
25 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
12.2 cm
Package 1 width
38.0 cm
Package 1 length
68.5 cm
Package 1 weight
5.975 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-

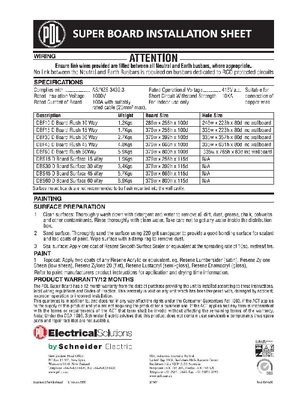

Quick Start Guide
-

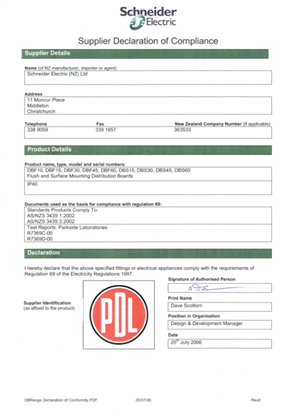

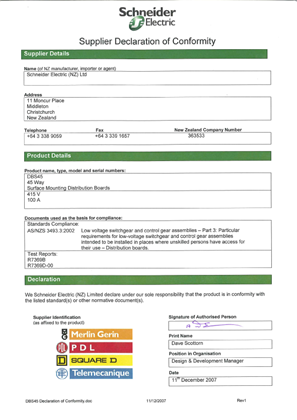

Declaration of Conformity
