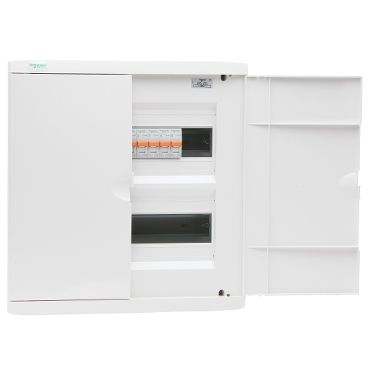

Superboard Series Distribution Board Bundle Pack 30 Way, 100A, Flush Mount
Item Number: PDLDBF30BPDOM63
Datasheet
Close
Specifications
Design
Range of product
Superboard Series
Product or component type
distribution board
Colour tint
white
Surface finish
gloss
Physical
Installation direction
vertical
Rated current
100 A
[ue] rated operational voltage
415 V
Mounting mode
flush-mounted
Ip degree of protection
IP40
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
ABS (acrylonitrile butadiene-styrene)
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
[ui] rated insulation voltage
1000 V
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
105 cm
Package 1 width
385 cm
Package 1 length
405 cm
Package 1 weight
4.1 kg
Sustainable packaging
No
Warranty (in months)
18
