EVlink Pro AC 4G Modem Kit with 4G Cellular Modem and 2 Antennas

Item Number: EVA1MS

1 PCE 0

This communication accessory for EVlink Pro AC contains a 4G modem and 2 antennas that are installed inside the charging station. It allows the EVlink Pro AC charging station to connect to EV Advisor platform or an external supervision system or any cloud based software. There is an instruction sheet that provides step by step guidance on the installation of the 4G modem and the antennas.

Where To Buy

Datasheet

Download

Product Dimensions

Width120 mm

Height20 mm

Depth160 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606486078471	-

Specifications

Design

Range	EVlink
Product or component type	4G modem
Product compatibility	charging station

Physical

Range compatibility	EVlink EVlink Pro AC
Communication network type	4G LTE UMTS GSM
Mounting mode	by screws
Integrated connection type	micro SIM (3FF) card slot
Width	120 mm
Height	20 mm
Depth	160 mm
Net weight	70 g
Ambient air temperature for operation	-30...50 °C
Ambient air temperature for storage	-40...80 °C
Relative humidity	5...95 %
Standards	EN/IEC 63000:2018 AS/NZS CISPR 32
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2202024EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	spare parts, accessories or module, no need in separate
Average percentage of asi certified metals	0 %
Average percentage of coppermark certified metals	0 %
Average percentage of responsible steel certified metals	0 %
China carbon footprint certification	Not certified
China energy label	N/A
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Accessory / separate part category	communication accessory
Kit composition	1 modem 2 screw 2 antenna 1 instruction sheet
Antenna type	internal
Transmission rate	10 Mbps for downlink 5 Mbps for uplink
Directives	RED directive 2014/53/UE and UK equivalent
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.000 cm
Package 1 width	11.500 cm
Package 1 length	16.000 cm
Package 1 weight	74.000 g
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Pvc free	N/A
Halogen-free status	N/A
Silicone-free	N/A
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	No
China green design product	No
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	0a787687-ca4b-4982-8684-548a3b52ac76
End of life manual availability	ENVEOLI2202024
Removable battery	No
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

All
Product Brochures
How to video
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
System User Guide
Technical Drawing
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

EVlink Pro AC 4G Modem Kit with 4G Cellular Modem and 2 Antennas

Item Number: EVA1MS

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

Product Brochures

How to video

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

System User Guide

Technical Drawing

Declaration of Conformity

Certificates (MSDS)

Declaration of Conformity (Sustainability)

EVlink Pro AC - Brochure

EVlink Pro AC

EVlink Parking Substitution Guide

EVlink Smart Wallbox Substitution Guide

EVlink Pro AC Metal, the next generation of charging stations for electric vehicles

How to Install 4G embedded modem for Pro AC

How to configure EVlink Pro AC Ethernet communication parameters with eSetup

EVlink Charging and Storage solutions - Catalog 2026

EVlink AC charger 3.7kw 16A 1PH T2S SOCKET 6mA RCD Type A MNX

EVlink AC charger 3.7kw 16A 1PH T2S SOCKET 6mA RCD Type A MNX

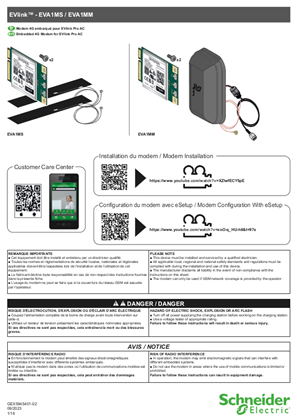

EVlink Pro AC - Embedded 4G Modem - EVA1MS / EVA1MM - Instruction Sheet

eMobility Infrastructure Design Guide for Building Applications

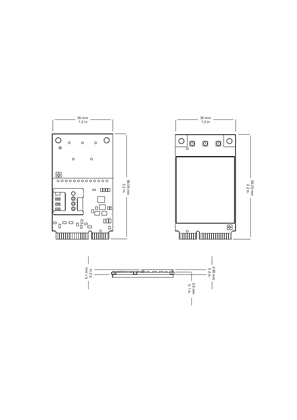

4G kit for EVlink Pro AC - Technical Drawings

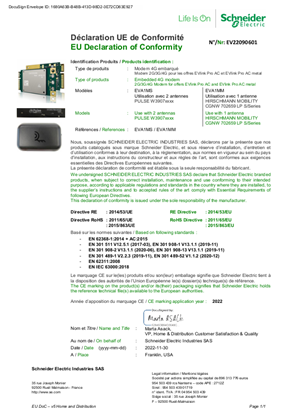

EU Declaration of Conformity - EVlink Pro AC - Embedded 4G modem

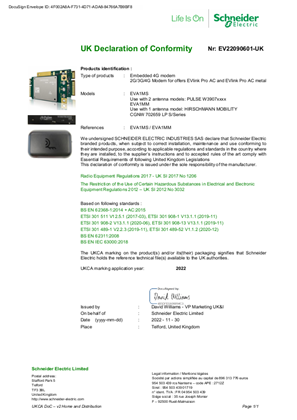

UK Declaration of Conformity - EVlink Pro AC - Embedded 4G modem

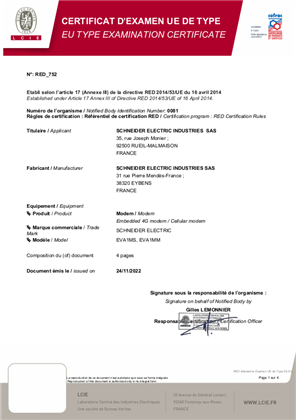

EU Type Examination Certificate, Embedded 4G modem, EVA1MS, EVA1MM
