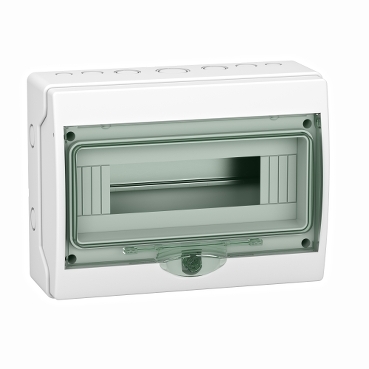

Mureva Enclosure Mini enclosure for modular device 1x12 modules, without terminal block

Item Number: 13979

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width267 mm

Height200 mm

Depth112 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3303430139799	-

Specifications

Design

Range	Mureva
Product or component type	weatherproof enclosure
Colour	door: transparent green enclosure: light grey (RAL 7035)
Market segment	residential small commercial

Physical

Electrical insulation class	double insulation class II
Provided equipment	1 marking kit
[in] rated current	63 A
Width	267 mm
Height	200 mm
Depth	112 mm
Standards	IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1
Ip degree of protection	IP65 conforming to IEC 60529
Ik degree of protection	IK09 conforming to EN 50102
Environmental characteristic	UV resistant: class 3 conforming to ISO 4582:2010 ultraviolet degradation test conforming to ISO 4892-2:2013
Ambient air temperature for operation	-25...60 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2301024EN
Eu rohs directive	Compliant

Others

Certification number	DC-E-S26-060.2 - IRAM
Life cycle assessment data	Yes
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	4
Package 3 bare product quantity	96
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	24 %
	At least in Europe
Weee label	No
Product name	Mureva Enclosure
Enclosure type	mini enclosure for modular device
Mounting plate description	slotted
Enclosure mounting	surface
9 mm pitches	24
Number of 18 mm modules per row	12
Total number of 18 mm modules	12
Number of horizontal rows	1
Type of front cover	transparent
Power dissipation in w	19 W
Type of rail	DIN
Number of pre-cutouts pg iso	7
Locking options description	optional keylock
Enclosure material	self-extinguishing polymer
Internal depth	56 mm
Fire resistance	650 °C conforming to IEC 60695-2-1
Overvoltage category	II
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.400 cm
Package 1 width	20.000 cm
Package 1 length	26.600 cm
Package 1 weight	810.000 g
Unit type of package 2	BB1
Number of units in package 2	4
Package 2 height	22.000 cm
Package 2 width	34.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.500 kg
Unit type of package 3	P12
Number of units in package 3	96
Package 3 height	80.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	99.480 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.273027332
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.10271646
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.056235728
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.8150505
Carbon footprint of the end-of-life phase [c1 to c4]	0.8 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	5.247030019
Average percentage of recycled plastic content	24 %
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	5036b720-908f-495f-9f9e-e215274e05b0
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=13979_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=13979_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas regulation	Item contains PFAS Chemicals
Pop directive	No POPs
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
