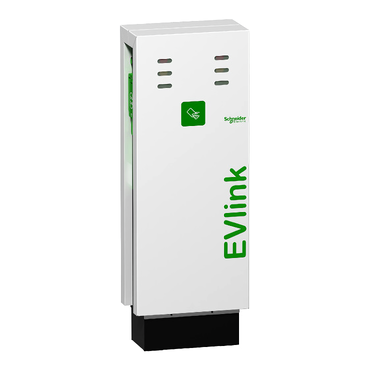

EVlink Parking Floor Standing EV Charging Station 7KW 2XT3 RFID
Item Number: EVF1S7P33R
Specifications
Design
Range
Product or component type
Physical
Mounting mode
Socket number
Control type
- 2 green illuminated push-button, function: unlock flap
- 2 red push-button, function: stop
Local signalling
- on charge: 2 LED (green) (flashing)
- available: 2 LED (green)
- reserved: 2 LED (orange)
- not operational: 2 LED (red)
Standards
- IEC 61851-22
- IEC 61851-1
Product certifications
- CE
- CB
Height
Width
Depth
Net weight
Ip degree of protection
- IP54 off load conforming to IEC 61851-1
- IP54 on load conforming to IEC 61851-1
Ik degree of protection
- IK10 charging station conforming to IEC 61851-22
- IK08 socket-outlet conforming to IEC 61851-22
Ambient air temperature for operation
Ambient air temperature for storage
Relative humidity
Others
Legacy weee scope
Weee label
Package 1 bare product quantity
Product name
Device short name
Poles description
- 1P + N for control circuit
- 1P + N for power circuit
Offer type
[us] rated supply voltage
- 230 V AC 50/60 Hz control circuit
- 230 V AC 50/60 Hz power circuit
Earthing system
- TT
- TN
Socket outlet type
Socket-outlet type
- right: T3 / silver plated contacts
- left: T3 / silver plated contacts
Maximum supply current
Nominal output power
Access control system
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Sustainable packaging
Weee label
