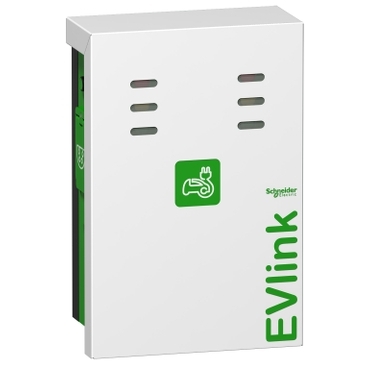

EVlink Parking Wall Mounted EV Charging Station 7KW 2XT2

Home ProductsElectric Vehicle ChargersEVlinkParking Wall Mounted EV Charging Station

EVlink Parking Wall Mounted EV Charging Station 7KW 2XT2

Item Number: EVW1S7P22

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width413 mm

Height icon

Height620 mm

Depth icon

Depth256 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Physical

Mounting mode

wall-mounted

Socket number

2

Control type

  • 2 green illuminated push-button, function: unlock flap
  • 2 red push-button, function: stop

Local signalling

  • on charge: 2 LED (green) (flashing)
  • available: 2 LED (green)
  • reserved: 2 LED (orange)
  • not operational: 2 LED (red)

Standards

  • IEC 61851-22
  • IEC 61851-1

Product certifications

  • CB
  • CE

Height

620 mm

Width

413 mm

Depth

256 mm

Net weight

33 kg

Ip degree of protection

  • IP54 off load conforming to IEC 61851-1
  • IP54 on load conforming to IEC 61851-1

Ik degree of protection

  • IK10 charging station conforming to IEC 61851-22
  • IK08 socket-outlet conforming to IEC 61851-22

Ambient air temperature for operation

-30...50 °C conforming to IEC 61851...22

Ambient air temperature for storage

-40...80 °C

Relative humidity

0...95 %

Others

Legacy weee scope

In

Package 1 bare product quantity

1

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

EVlink parking

Device short name

EVW1

Poles description

  • 1P + N for control circuit
  • 1P + N for power circuit

Offer type

standard

[us] rated supply voltage

  • 230 V AC 50/60 Hz control circuit
  • 230 V AC 50/60 Hz power circuit

Earthing system

  • TT
  • TN

Socket outlet type

2 x T2

Socket-outlet type

  • right: T2
  • left: T2

Maximum supply current

32 A

Nominal output power

7 kW

Operating altitude

0...2000 m conforming to IEC 61851-22

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

50 cm

Package 1 width

45 cm

Package 1 length

68 cm

Package 1 weight

25.6 kg

Sustainable packaging

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications
