EVlink, Smart WallBox, 22 kW, Attached cable T2, RFID

Home ProductsElectric Vehicle ChargingEVlinkSmart WallBox

EVlink, Smart WallBox, 22 kW, Attached cable T2, RFID

Item Number: EVB1A22PCRI

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width330 mm

Height icon

Height480 mm

Depth icon

Depth170 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Sustainable offer status

Green Premium product

Physical

Mounting mode

wall-mounted|pedestal mount

Socket number

1

Connector type

RS485 for metering Modbus|3 RJ45 for Ethernet LAN connection

Control type

can be controlled by remote|1 multi-colour illuminated push-button, function: stop/restart

Local signalling

1 multi-colour LED, function: status indication

Communication port protocol

OCPP 1.6

Function available

charge detail records|diagnosis capabilities|load management

Height

480 mm

Width

330 mm

Depth

170 mm

Standards

IEC 61851-22|IEC 61851-1|IEC 62196-2|IEC 62196-1

Product certifications

CE|CB|RCM

Ip degree of protection

IP54 conforming to IEC 60529

Ik degree of protection

IK10 conforming to IEC 62262

Ambient air temperature for operation

-30...50 °C

Ambient air temperature for storage

-40...80 °C

Relative humidity

5...95 %

Net weight

8.3 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

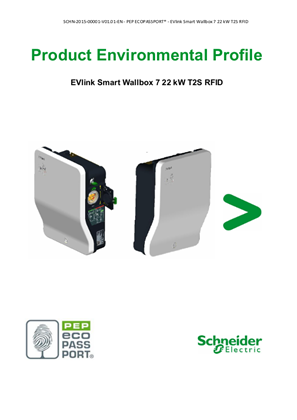

Environmental disclosure

ENVPEP1605005

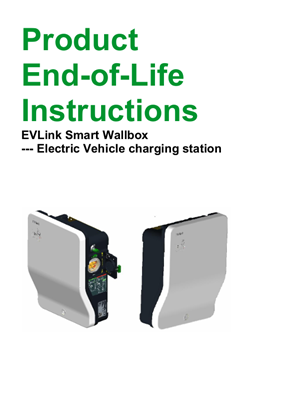

Circularity profile

ENVEOLI1605005

Others

Commercial status history

SESA301466 | Sun Jun 16 23:07:00 EDT 2024 | From Unitary Local | From 16 to 19

Package 1 bare product quantity

1

Product name

EVlink Smart Wallbox

Device short name

EVB1

Poles description

3P + N for power circuit

Offer type

standard

[us] rated supply voltage

380...415 V AC 50/60 Hz

Nominal output power

22 kW 32 A 380...415 V

Access control system

badge RFID conforming to ISO/IEC 14443 A and B|badge RFID conforming to ISO/IEC 15693|badge RFID conforming to ISO 14443-4 A

Socket outlet type

cable T2

Output type

right side T2 attached cable / silver plated contacts 4.5 m

Earthing system

TT|compatible IT with additional isolation transformer on the power supply|TN-S

Number of inputs

6

Input type

binary for power limitation closing contact|binary for delayed charging closing contact

Operating mode

standalone|clustered architecture

Web server

embedded

Ethernet service

configuration via web server

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

27.000 cm

Package 1 width

40.000 cm

Package 1 length

54.000 cm

Package 1 weight

10.800 kg

Unit type of package 2

P06

Number of units in package 2

4

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

51.908 kg
