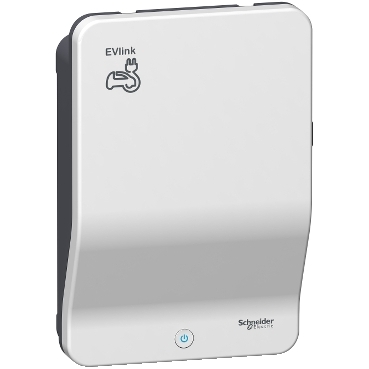

EVlink Smart WallBox 7.4/22 kW, T2, Key

Item Number: EVB1A22P2KI

1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width331 mm

Height480 mm

Depth170 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480935206	-
4	P06	73606480935205	-

Specifications

Design

Range	EVlink
Product or component type	charging station

Physical

Mounting mode	wall-mounted pedestal mount
Socket number	1
Connector type	RS485 for metering Modbus 3 RJ45 for Ethernet LAN connection
Control type	can be controlled by remote 1 multi-colour illuminated push-button, function: stop/restart
Local signalling	1 multi-colour LED, function: status indication
Communication port protocol	OCPP 1.6
Function available	charge detail records load management diagnosis capabilities
Height	480 mm
Width	331 mm
Depth	170 mm
Standards	IEC 61851-22 IEC 62196-2 IEC 61851-1 IEC 62196-1
Product certifications	CE CB RCM
Ip degree of protection	IP54 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Ambient air temperature for operation	-30...50 °C
Ambient air temperature for storage	-40...80 °C
Relative humidity	5...95 %
Net weight	6.2 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1605005EN
Eu rohs directive	Compliant By Exemption

Others

Package 1 bare product quantity	1
Legacy weee scope	In
China energy label	N/A
China carbon footprint certification	Not certified
Average percentage of responsible steel certified metals	0 %
Average percentage of coppermark certified metals	0 %
Average percentage of asi certified metals	0 %
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Average percentage of recycled plastic content	0 %
	At least in Europe
Product name	EVlink Smart Wallbox
Device short name	EVB1
Poles description	3P + N for power circuit 1P + N for power circuit
Offer type	standard
[us] rated supply voltage	380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz
Nominal output power	22 kW 32 A 380...415 V 7.4 kW 32 A 222...240 V
Access control system	key
Socket outlet type	T2
Output type	right side T2 socket-outlet / silver plated contacts
Earthing system	TT compatible IT with additional isolation transformer on the power supply TN-S
Number of inputs	6
Input type	binary for power limitation closing contact binary for delayed charging closing contact
Operating mode	standalone clustered architecture
Web server	embedded
Ethernet service	configuration via web server
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	27.000 cm
Package 1 width	40.000 cm
Package 1 length	54.000 cm
Package 1 weight	8.576 kg
Unit type of package 2	P06
Number of units in package 2	4
Package 2 height	50.000 cm
Package 2 width	60.000 cm
Package 2 length	80.000 cm
Package 2 weight	42.804 kg
Sustainable packaging	No
Pvc free	N/A
Silicone-free	N/A
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	No
China green design product	No
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	ENVEOLI1605005
Removable battery	No
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
