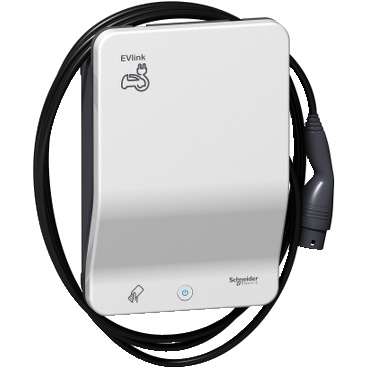

EVlink Smart WallBox 7.4 kW, Attached cable T2, RFID

Item Number: EVB1A7PCRI

1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width330 mm

Height480 mm

Depth170 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480935299	-
4	P06	73606480935298	-

Specifications

Design

Range	EVlink
Product or component type	charging station

Physical

Mounting mode	pedestal mount wall-mounted
Socket number	1
Connector type	RS485 for metering Modbus 3 RJ45 for Ethernet LAN connection
Control type	can be controlled by remote 1 multi-colour illuminated push-button, function: stop/restart
Local signalling	1 multi-colour LED, function: status indication
Communication port protocol	OCPP 1.6
Function available	charge detail records load management diagnosis capabilities
Height	480 mm
Width	330 mm
Depth	170 mm
Standards	IEC 62196-2 IEC 61851-1 IEC 62196-1 IEC 61851-22
Product certifications	CB CE RCM
Ip degree of protection	IP54 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Ambient air temperature for operation	-30...50 °C
Ambient air temperature for storage	-40...80 °C
Relative humidity	5...95 %
Net weight	7.7 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1605005
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

China carbon footprint certification	Not certified
China energy label	N/A
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	4
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	EVlink Smart Wallbox
Device short name	EVB1
Poles description	1P + N for power circuit
Offer type	standard
[us] rated supply voltage	220...240 V AC 50/60 Hz
Nominal output power	7.4 kW 32 A 222...240 V
Access control system	badge RFID conforming to ISO/IEC 14443 A and B badge RFID conforming to ISO/IEC 15693 badge RFID conforming to ISO 14443-4 A
Socket outlet type	cable T2
Output type	right side T2 attached cable / silver plated contacts 4.5 m
Earthing system	compatible IT with additional isolation transformer on the power supply TN-S TT
Number of inputs	6
Input type	binary for power limitation closing contact binary for delayed charging closing contact
Operating mode	standalone clustered architecture
Web server	embedded
Ethernet service	configuration via web server
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	26.500 cm
Package 1 width	40.000 cm
Package 1 length	55.000 cm
Package 1 weight	9.950 kg
Unit type of package 2	P06
Number of units in package 2	4
Package 2 height	69.000 cm
Package 2 width	80.000 cm
Package 2 length	60.000 cm
Package 2 weight	49.000 kg
Sustainable packaging	No
Pvc free	N/A
Halogen-free status	N/A
Silicone-free	N/A
F-gas free	N/A
Updatability	N/A
Take-back	N/A
Product contributes to saved and avoided emissions	No
Removable battery	No
China green design product	No
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	ENVEOLI1605005
Removable battery	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
