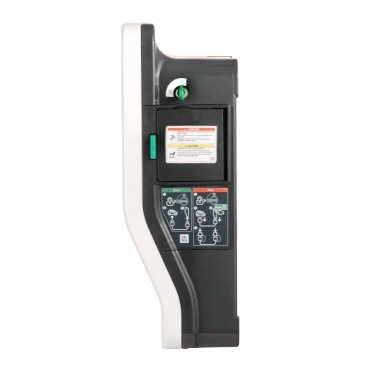

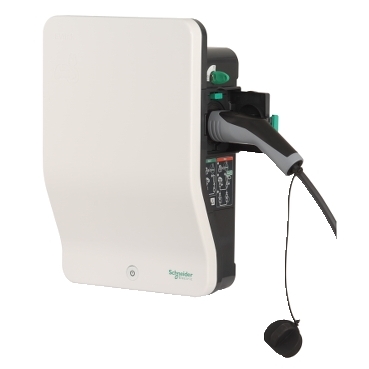

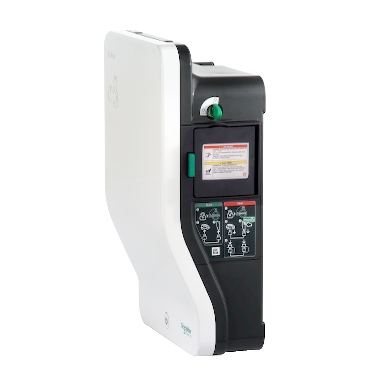

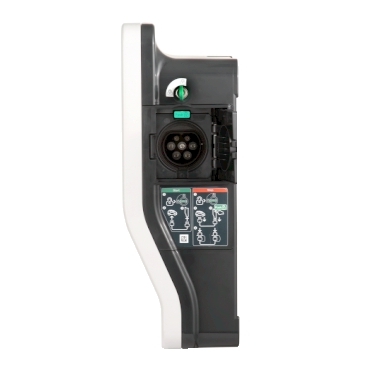

EVlink WallBox Charging Station 11 kW, T2 Socket Outlet

Item Number: EVH2S11P02K

1 PCE 1

Where To Buy

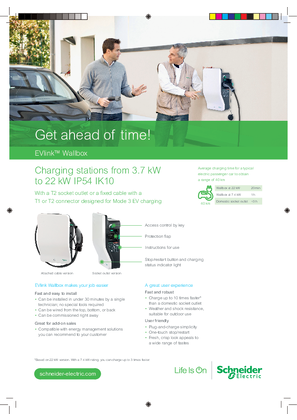

Datasheet

Download

Product Dimensions

Width331.5 mm

Height480 mm

Depth170 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606485405971	-
4	P06	73606485405970	-

Specifications

Design

Range	EVlink
Product or component type	charging station

Physical

Mounting mode	wall-mounted
Socket number	1
Control type	1 white button, function: stop/restart green button, function: cable unlocking
Local signalling	1 multi-colour LED, function: status indication
Height	480 mm
Width	331.5 mm
Depth	170 mm
Net weight	5.6 kg
Standards	IEC 62196-2 IEC 61851-22 IEC 61851-1 IEC 62196-1

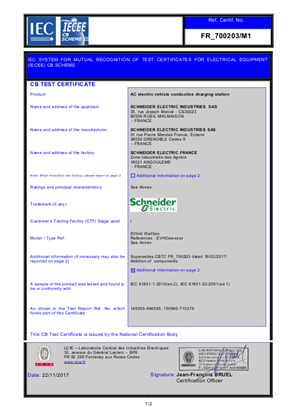

Product certifications	CB CE
Ip degree of protection	IP54 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Ambient air temperature for operation	-30...50 °C
Ambient air temperature for storage	-40...80 °C
Relative humidity	5...95 %
Mercury free	Yes
Rohs exemption information	Yes

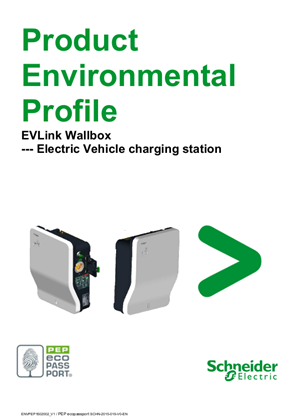

Environmental disclosure	ENVPEP1502002EN
Eu rohs directive	Compliant By Exemption

Others

Average percentage of asi certified metals	0 %
Average percentage of coppermark certified metals	0 %
Average percentage of responsible steel certified metals	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Package 1 bare product quantity	1
Legacy weee scope	In
China energy label	N/A
China carbon footprint certification	Not certified
Product name	EVlink Wallbox
Device short name	EVH2
Poles description	3P + N
Offer type	standard
Nominal output power	11 kW 16 A

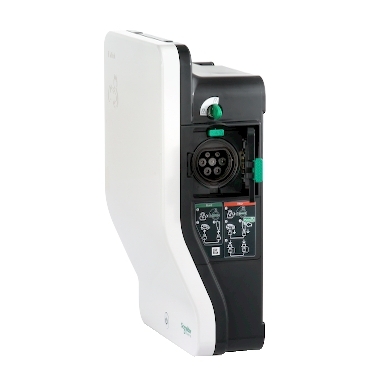

Socket outlet type	T2
Output type	socket-outlet T2
Access control system	key
[us] rated supply voltage	380...415 V AC 50/60 Hz
Earthing system	TT TN
Number of inputs	1
Input type	contact for power limitation contact for delayed charging
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	25.5 cm
Package 1 width	53.5 cm
Package 1 length	40.0 cm
Package 1 weight	8.397 kg
Unit type of package 2	P06
Number of units in package 2	4
Package 2 height	77.0 cm
Package 2 width	80.0 cm
Package 2 length	60.0 cm
Package 2 weight	42.088 kg
Sustainable packaging	No
Pvc free	N/A
Silicone-free	N/A
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	No
China green design product	No
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	ENVEOLI1502002EN
Removable battery	No
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
