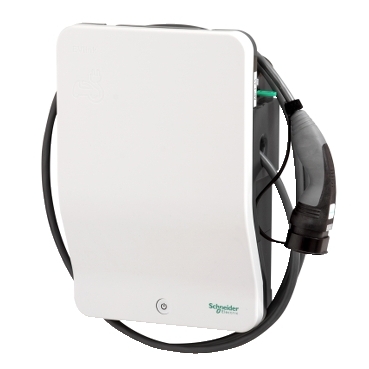

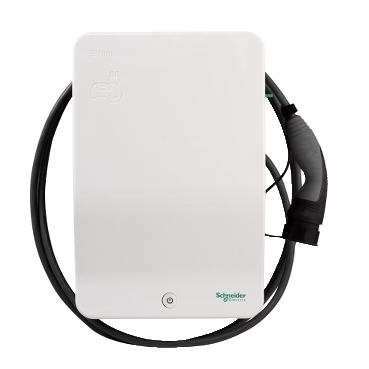

EVlink, WallBox Charging Station, 7.4 kW, T1 attached Cable

Home ProductsElectric Vehicle ChargingEVlinkWallBox Charging Station

EVlink, WallBox Charging Station, 7.4 kW, T1 attached Cable

Item Number: EVH2S7P0AK

Where To Buy

Datasheet

Download

Product Dimensions

Width icon

Width330 mm

Height icon

Height480 mm

Depth icon

Depth170 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Sustainable offer status

Green Premium product

Physical

Mounting mode

wall-mounted

Socket number

1

Control type

1 white button, function: stop/restart|green button, function: cable unlocking

Local signalling

1 multi-colour LED, function: status indication

Height

480 mm

Width

330 mm

Depth

170 mm

Net weight

7.5 kg

Standards

IEC 61851-1|IEC 61851-22|IEC 62196-2|IEC 62196-1

Product certifications

CB|CE

Ip degree of protection

IP54 conforming to IEC 60529

Ik degree of protection

IK10 conforming to IEC 62262

Ambient air temperature for operation

-30...50 °C

Ambient air temperature for storage

-40...80 °C

Relative humidity

5...95 %

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1502002EN

Circularity profile

ENVEOLI1502002EN

Others

Package 1 bare product quantity

1

Product name

EVlink Wallbox

Device short name

EVH2

Poles description

1P + N

Offer type

standard

Nominal output power

7.4 kW 32 A

Socket outlet type

cable T1

Output type

attached cable T1 4 m

Access control system

key

[us] rated supply voltage

220...240 V AC 50/60 Hz

Earthing system

TT|TN

Number of inputs

1

Input type

contact for power limitation|contact for delayed charging

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

25.5 cm

Package 1 width

53.5 cm

Package 1 length

40 cm

Package 1 weight

9.394 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Quick Start Guide

  • Declaration of Conformity

  • Certificates (MSDS)

EVlink wallbox brochure- B2C-T2EN
ZIP

EVlink wallbox brochure- B2C-T2EN

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 4.7 MB
EVlink wallbox partner leaflet-INST-T1T2EN
ZIP

EVlink wallbox partner leaflet-INST-T1T2EN

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB
CAD for EVlink Wallbox and Wallbox Plus with T2(S) Socket
ZIP

CAD for EVlink Wallbox and Wallbox Plus with T2(S) Socket

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 23.3 MB
EVLink Wallbox Electric Vehicle charging station - PEP
ZIP

EVLink Wallbox Electric Vehicle charging station - PEP

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 329.1 KB
EVlink Wallbox - EVlink Smart Wallbox - EVP1HCWN - Front panel replacement - Instruction sheet
ZIP

EVlink Wallbox - EVlink Smart Wallbox - EVP1HCWN - Front panel replacement - Instruction sheet

VERSION

1.0

DATE

30 Jan 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.3 MB

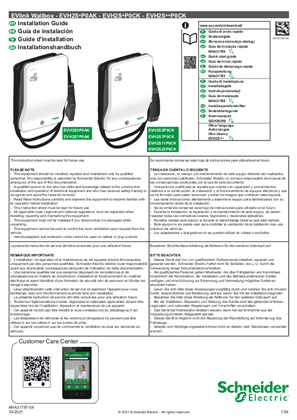

EVlink Wallbox - EVH2S - Type 1 attached cable - Type 2 attached cable - Installation Guide
ZIP

EVlink Wallbox - EVH2S - Type 1 attached cable - Type 2 attached cable - Installation Guide

VERSION

1.2

DATE

25 Jan 2022

REVISION

1.2

DOWNLOAD (ZIP) 21.5 MB

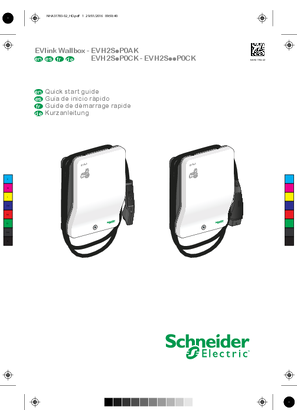

EVlink Wallbox - EVH2S - Type 1 attached cable - Type 2 attached cable - Quick Start Guide (EN, ES, FR, DE)
ZIP

EVlink Wallbox - EVH2S - Type 1 attached cable - Type 2 attached cable - Quick Start Guide (EN, ES, FR, DE)

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.7 MB
EVlink Preventive maintenance guide
ZIP

EVlink Preventive maintenance guide

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
EVlink Wallbox - EC Declaration of Conformity - EVH2
ZIP

EVlink Wallbox - EC Declaration of Conformity - EVH2

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 167.7 KB
EVlink Wallbox - EVH2 - CB Test Certificate - IEC 61851
ZIP

EVlink Wallbox - EVH2 - CB Test Certificate - IEC 61851

VERSION

1.1

DATE

23 Feb 2024

REVISION

1.1

DOWNLOAD (ZIP) 488.8 KB
EVlink Wallbox EVH2 series - Certificate of Conformity - TUV
ZIP

EVlink Wallbox EVH2 series - Certificate of Conformity - TUV

VERSION

1.4

DATE

23 Feb 2024

REVISION

1.4

DOWNLOAD (ZIP) 128.4 KB
