900 Series Plug 10A Side-Entry 3-Pin Rewireable

Home ProductsElectrical Accessories900 SeriesPlug

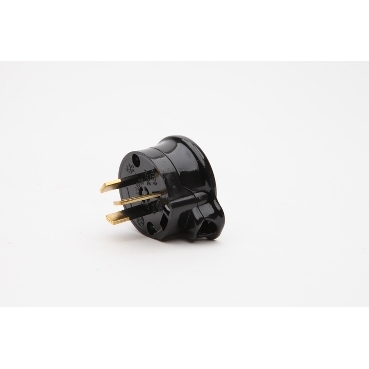

900 Series Plug 10A Side-Entry 3-Pin Rewireable | Black

Item Number: PDL901BK

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

900 Series

Product or component type

plug

Colour tint

white

Surface finish

gloss

Physical

Width

45 mm

Rated current

10 A

[ue] rated operational voltage

230/240 V

Pin number

3

Ambient air temperature for operation

-10...40 °C

Connector type

screw terminals

Quantity per set

set of 20

Type of packing

carton

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Weee label

N/A

Weee applicability

Finished product

Legacy weee scope

In

Outside of Europe

Diameter

45 mm

Network frequency

50 Hz

Cable cross section

0.75...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.5 cm

Package 1 width

4.5 cm

Package 1 length

5.5 cm

Package 1 weight

0.031 kg

Unit type of package 2

BB1

Number of units in package 2

20

Package 2 height

76 cm

Package 2 width

118 cm

Package 2 length

193 cm

Package 2 weight

0.74 kg

Total lifecycle carbon footprint

0.4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.2572970518278569

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.01505376001580277

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.006536699751308817

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.09592901090053924

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.37481652249550773

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Quick Start Guide

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Electric Home Design Digital Magazine
ZIP

Electric Home Design Digital Magazine

VERSION

5.0

DATE

10 Jun 2025

REVISION

5.0

DOWNLOAD (ZIP) 6.9 MB

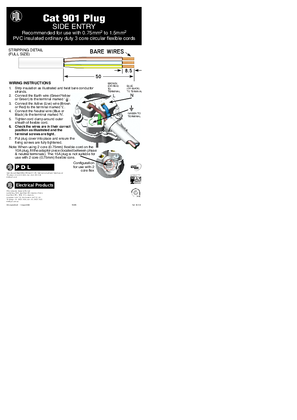

Wiring Accessories wiring instructions for 901 side entry plug
