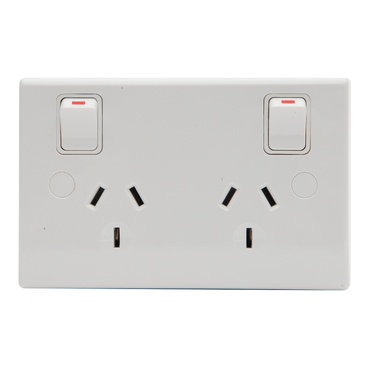

500 Series Double Switched Socket Outlet 10A, 230/240VAC, Horizontal Mount | White
Item Number: PDL595FWH
Datasheet
Close
Specifications
Design
| Range of product | 500 Series |
|---|---|
| Product or component type | socket |
| Colour tint | white |
| Surface finish | gloss |
Physical
| Quantity per set | set of 10 |
|---|---|
| Type of packing | carton |
| Control type | rocker |
| Installation direction | horizontal |
| Width | 118 mm |
| Height | 74 mm |
| [ie] rated operational current | 10 A |
| [ue] rated operational voltage | 220/240 V 50 Hz |
| Number of gangs | 2 gangs |
| Connections - terminals | 3 x 2.5-2.5 mm² terminals |
| Number of poles | 3 |
| Device mounting | surface |
| Fixing center | 84 mm |
| Ambient air temperature for operation | -10...40 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
