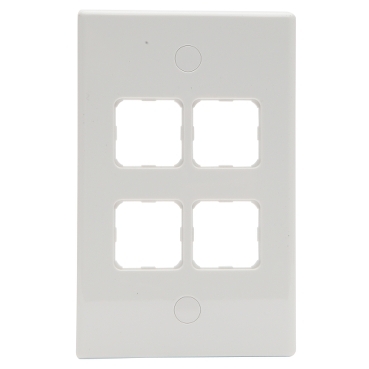

500 Series Grid Switch Plate Vertical/Horizontal Mount, 4 Aperture | White
Item Number: PDL584VHWH
Datasheet
Close
Specifications
Design
Range of product
500 Series
Product or component type
cover plate
Colour tint
white
Surface finish
gloss
Physical
Quantity per set
set of 20
Type of packing
carton
Control type
switch
Installation direction
horizontal/vertical
Width
74 mm
Height
118 mm
Number of gangs
4 gangs
Device mounting
surface
Fixing center
84 mm
Ambient air temperature for operation
-10...40 °C
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.7 cm
Package 1 width
7.4 cm
Package 1 length
11.8 cm
Package 1 weight
38.3 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
