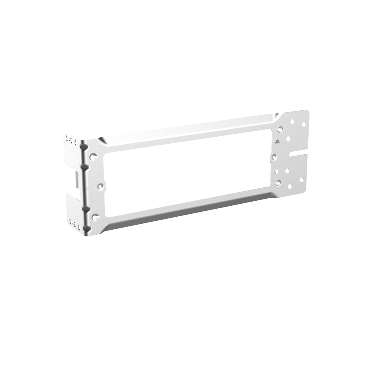

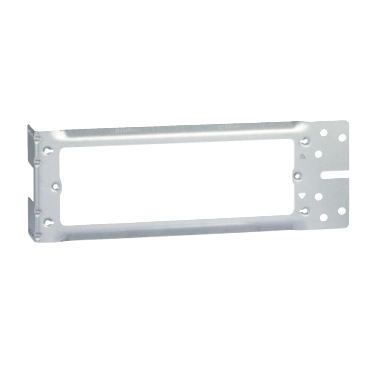

PDL General Accessories Iconic Mounting Bracket Quad Socket Horizontal, Metal

Item Number: PDL155H4

1 PCE 1

When mounting a PDL Iconic Quad Power Point, sometimes you need the extra support of a metal stud mounting bracket. The PDL Iconic Bracket for use with a Quad Power Point is designed for horizontal use. The mounting centre of the bracket is 179.8mm.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175244018	-
20	BB1	9416175244483	-
100	CAR	19416175244015	-

Specifications

Physical

Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2310013_V1
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.8 cm
Package 1 width	8.2 cm
Package 1 length	23.5 cm
Package 1 weight	92 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.4669920000000001
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.01383496
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.025559440000000003
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.2554748
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.7618612000000001
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
