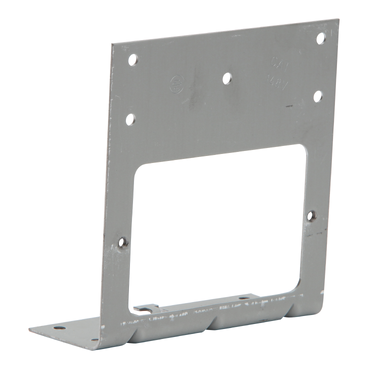

PDL General Accessories Mounting Bracket 1-Gang, Vertical, Standard, Metal
Item Number: PDL148V
Datasheet
Close
Specifications
Design
Range of product
PDL General Accessories
Product or component type
mounting bracket
Physical
Quantity per set
set of 20
Type of packing
carton
Installation direction
vertical
Mounting support
wall
Width
105 mm
Depth
external : 38 mm
Length
100 mm
Fixing center
84 mm
Number of gangs
1 gang
Ambient air temperature for operation
-10...40 °C
Toxic heavy metal free
Yes
Mercury free
Yes
Eu rohs directive
Not applicable, out of EU RoHS legal scope
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
galvanised steel
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cut-out dimensions
77 x 52 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.8 cm
Package 1 width
10 cm
Package 1 length
10.4 cm
Package 1 weight
90.7 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
