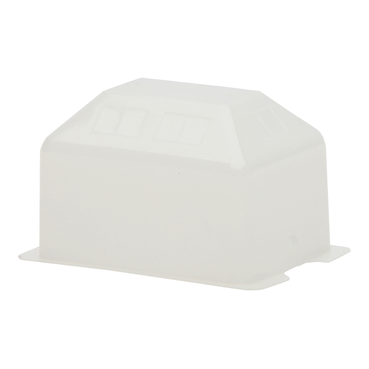

PDL General Accessories Round Socket 10A, 230-240VAC, 1-2.5mm Panel
Item Number: PDL193R/1
Datasheet
Close
Specifications
Design
| Range of product | PDL General Accessories |
|---|---|
| Product or component type | socket |
| Surface finish | glossy |
Physical
| Quantity per set | set of 25 |
|---|---|
| Type of packing | carton |
| [in] rated current | 10 A |
| [ue] rated operational voltage | 230/240 V AC 50 Hz |
| Number of gangs | 1 gang |
| Socket number | 3 |
| Installation direction | vertical |
| Mounting support | panel |
| Fixing center | 38 x 32 mm |
| Connections - terminals | 6.35-6.35 mm² spade terminal |
| Ambient air temperature for operation | -10...40 °C |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Eu rohs directive | Compliant |
Material
| Material |
|
|---|
