Specifications
Design
| Range of product | PDL General Accessories |
|---|---|

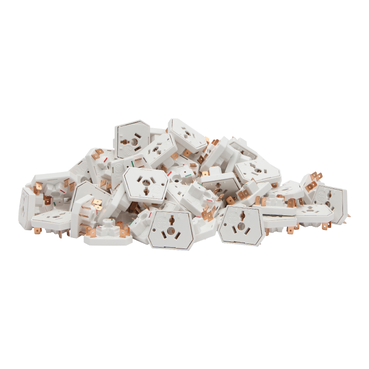

| Product or component type | socket-outlet |
| Colour tint | white |
| Surface finish | glossy |
Physical
| Quantity per set |
|
|---|---|
| Type of packing | carton |
| [in] rated current | 10 A |
| [ue] rated operational voltage |
|
| Number of gangs | 1 gang |
| Socket number | 3 |
| Installation direction | vertical |
| Mounting support | panel |
| Height | 32 mm |
| Width | 38 mm |
| Fixing center | 38 x 32 mm |
| Connections - terminals | 6.35-6.35 mm² spade terminal |
| Ambient air temperature for operation | -10...40 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2508038_V1-EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
