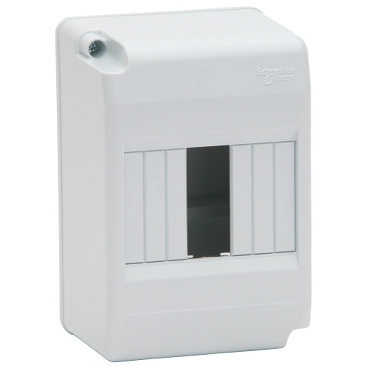

PDL Distribution Equipment Accessories Surface Enclosure 4-Way
Item Number: PDLSE4
Product PDLSE4 is replaced by R9HME104S
View here.
Specifications
Design
Range of product
PDL Distribution Equipment Accessories
Product or component type
enclosure
Colour tint
white
Surface finish
glossy
Physical
Quantity per set
set of 5
Type of packing
carton
Installation direction
vertical
Height
133 mm
Width
89 mm
Depth
70 mm
Device mounting
surface
Cable entry
- conduit entry of 25-25 mm diameter
- cut-out front
- knock-out top and bottom
Eu rohs directive
Under investigation
Material
Material
ABS (acrylonitrile butadiene-styrene)
Others
Commercial status history
- SESA65410
- Fri Apr 05 01:46:00 EDT 2024
- From Import Local
- From 20 to 19
Package 1 bare product quantity
1
Number of modules
1
Number of ways
4 ways
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.0 cm
Package 1 width
9.0 cm
Package 1 length
13.5 cm
Package 1 weight
0.147 kg
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
