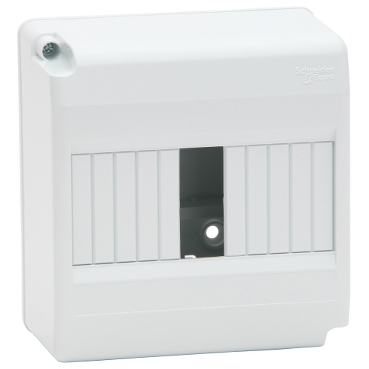

PDL Distribution Equipment Accessories Surface Enclosure 6-Way
Item Number: PDLSE6
Product PDLSE6 is replaced by R9HME106S
View here.
Specifications
Design
Range of product
PDL Distribution Equipment Accessories
Product or component type
enclosure
Colour tint
white
Surface finish
glossy
Physical
Quantity per set
set of 5
Type of packing
carton
Installation direction
vertical
Height
133 mm
Width
125 mm
Depth
70 mm
Device mounting
surface
Cable entry
- conduit entry of 25-25 mm diameter
- cut-out front
- knock-out top and bottom
Environmental disclosure
ENVPEP2306030EN
Eu rohs directive
Compliant
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
ABS (acrylonitrile butadiene-styrene)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Number of modules
1
Number of ways
6 ways
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.0 cm
Package 1 width
12.5 cm
Package 1 length
13.3 cm
Package 1 weight
0.192 kg
Sustainable packaging
No
Packaging made with recycled cardboard
Yes
End of life manual availability
ENVEOLI2306030EN
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-

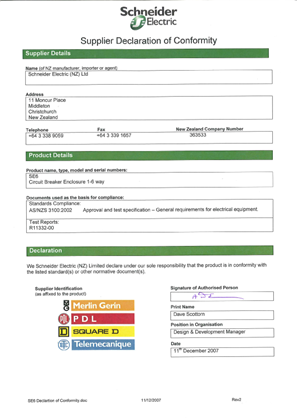

Declaration of Conformity
-
Declaration of Conformity (Sustainability)
Important: Some software files may need a mySchneider or Club login to download.
