Specifications
Design
Range of product
PDL General Accessories

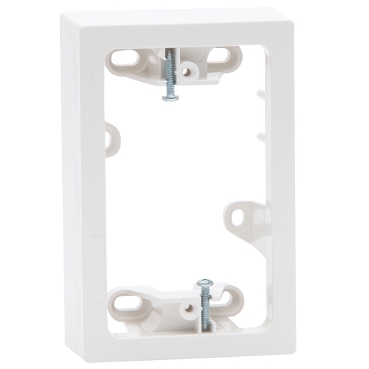

Product or component type
mounting plate
Colour tint
white
Surface finish
glossy
Physical
Quantity per set
- set of 10
- set of 100
Type of packing
carton
Installation direction
- vertical
- horizontal
Device mounting
surface
Width
80 mm
Depth
37 mm
Length
122 mm
Fixing center
84 mm
Ambient air temperature for operation
-10...40 °C
Environmental disclosure
ENVPEP130201EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Material
Material
PC (polycarbonate)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.7 cm
Package 1 width
7.5 cm
Package 1 length
12 cm
Package 1 weight
0.072 kg
Sustainable packaging
No
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-

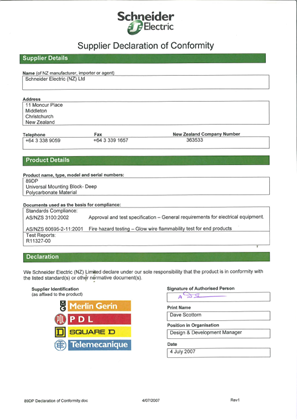

Declaration of Conformity
-
