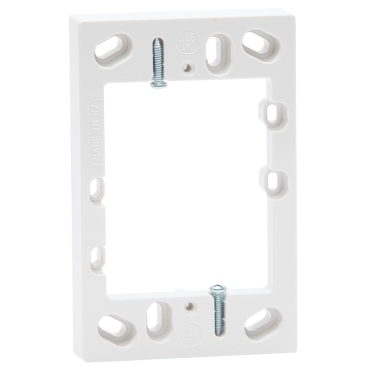

PDL General Accessories Universal Mounting Block Shallow 18mm, White

Item Number: PDL89SP

1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175092053	-

Specifications

Design

Range of product	PDL General Accessories
Product or component type	mounting plate
Colour tint	white
Surface finish	glossy

Physical

Quantity per set	set of 20 set of 200
Type of packing	carton
Installation direction	vertical horizontal
Device mounting	surface
Width	77 mm
Depth	18 mm
Length	120 mm
Fixing center	84 mm
Ambient air temperature for operation	-10...40 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2310013_V1
Eu rohs directive	Compliant

Material

Material	PC (polycarbonate)

Others

Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Package 1 bare product quantity	1
Legacy weee scope	In
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.0 cm
Package 1 width	8.0 cm
Package 1 length	12.0 cm
Package 1 weight	0.049 kg
Unit type of package 2	BB1
Number of units in package 2	20
Package 2 height	12 cm
Package 2 width	15.6 cm
Package 2 length	19.5 cm
Package 2 weight	1140.0 g
Unit type of package 3	CAR
Number of units in package 3	200
Package 3 height	20.8 cm
Package 3 width	31.7 cm
Package 3 length	62.1 cm
Package 3 weight	11400.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.24872400000000003
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.007368619999999999
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.01361318
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.1360681
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.4057739
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
