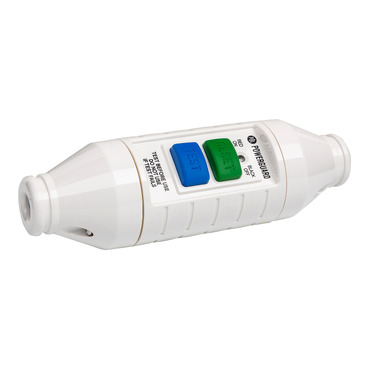

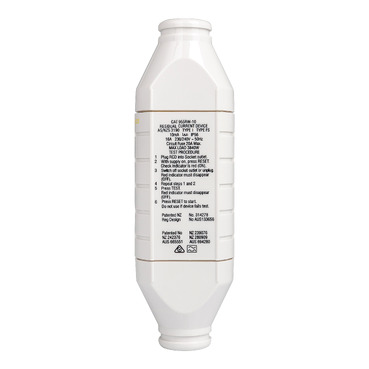

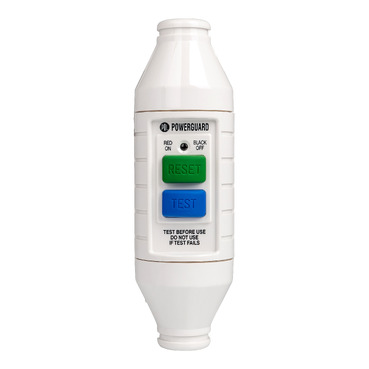

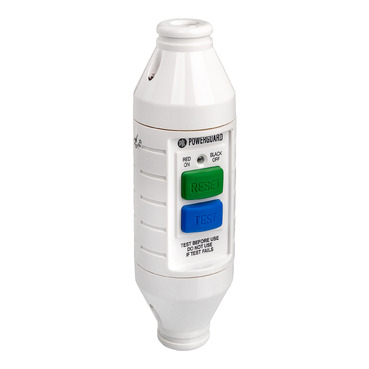

Powerguard Series In-Line RCD 16A, 230-240VAC, 10mA Trip

Home ProductsElectrical AccessoriesPowerguardIn-Line RCD

Powerguard Series In-Line RCD 16A, 230-240VAC, 10mA Trip | White

Item Number: PDL955RW10WH

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

residual current device

Colour tint

white

Surface finish

gloss

Physical

Rated current

16 A

[ue] rated operational voltage

230/240 V

Ip degree of protection

IP56

Ambient air temperature for operation

-10...40 °C

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060307EN

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Network frequency

50 Hz

Nominal power

3.84 kW

Network number of phases

1 phase

Cable cross section

0.75...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.0 cm

Package 1 width

6.5 cm

Package 1 length

17.6 cm

Package 1 weight

201.0 g

Total lifecycle carbon footprint

2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.020276

Carbon footprint of the manufacturing phase [a1 to a3]

1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.03022638

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.05584182

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.5581568999999974

Carbon footprint of the end-of-life phase [c1 to c4]

0.6 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

1.6645011

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
