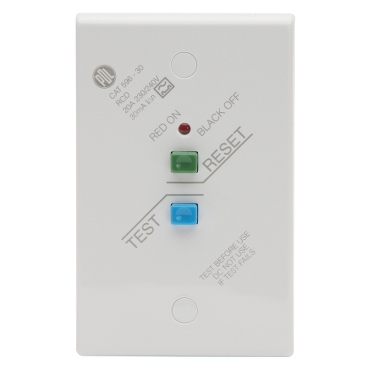

Powerguard Series Plate-Mounted RCD 20A, 230-240VAC, 1 Gang, 2P, 30mA Trip
Item Number: PDL596RCD30
Datasheet
Close
Specifications
Design
Range of product
500 Series
Product or component type
residual current device
Colour tint
white
Surface finish
glossy
Physical
Quantity per set
set of 1
Type of packing
carton
Control type
push-button
Width
74 mm
Height
118 mm
Number of poles
2
Device mounting
surface
Ambient air temperature for operation
-10...40 °C
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope
Eu rohs directive
Compliant By Exemption
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Weee label
N/A
Warranty duration(in months) bmecat
18
Outside of Europe
Network number of phases
1 phase
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
187.2 g
Sustainable packaging
No
China rohs label
5
End of life manual availability
N/A
Warranty (in months)
18
