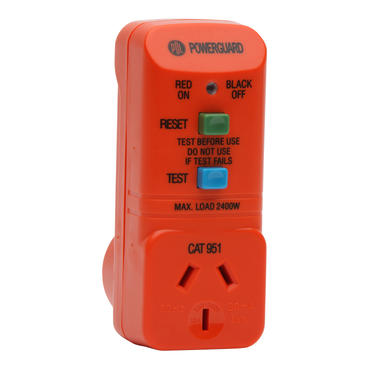

Powerguard Series Portable RCD 10A, 230-240VAC, 30mA Trip | Orange
Item Number: PDL951OR
Datasheet
Close
Specifications
Design
| Range of product | Powerguard Series |
|---|---|
| Product or component type | residual current device |
| Colour tint | white |
| Surface finish | gloss |
Physical
| Control type | push-button |
|---|---|
| Rated current | 10 A |
| [ue] rated operational voltage | 230/240 V |
| Number of poles | 2 |
| Ip degree of protection | IP3x |
| Ambient air temperature for operation | -10...40 °C |
| Quantity per set | set of 1 |
| Type of packing | blister |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP0603007EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material | PC (polycarbonate) |
|---|
