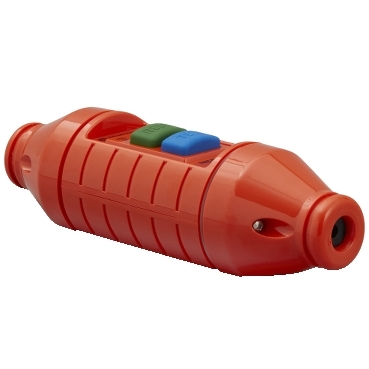

Powerguard Series Residual Current Device Powerguard Series, 2m, 10A, 30mA

Home ProductsElectrical AccessoriesPowerguardResidual Current Device

Powerguard Series Residual Current Device Powerguard Series, 2m, 10A, 30mA

Item Number: PDL955

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Powerguard Series

Product or component type

residual current device

Colour tint

orange

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Control type

push-button

Rated current

10 A

[ue] rated operational voltage

250 V

Ip degree of protection

IP33

Ambient air temperature for operation

-10...40 °C

Quantity per set

set of 1

Type of packing

carton

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP060307EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Commercial status history

SESA65410 | Fri Apr 05 01:46:00 EDT 2024 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Network frequency

50 Hz

Nominal power

2.4 kW

Network number of phases

1 phase

Cable cross section

0.75...1.5 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.1 cm

Package 1 width

24.1 cm

Package 1 length

30.9 cm

Package 1 weight

624.4 g

Unit type of package 2

CAR

Number of units in package 2

5

Package 2 height

325 cm

Package 2 width

260 cm

Package 2 length

353 cm

Package 2 weight

3.12 kg
Show all specifications
