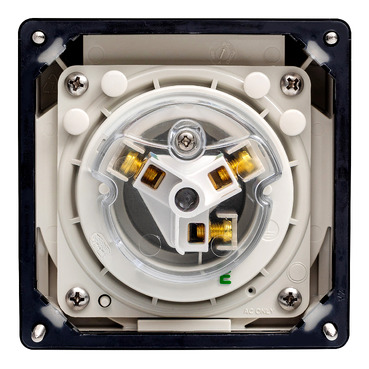

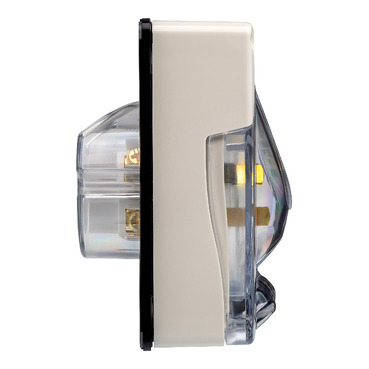

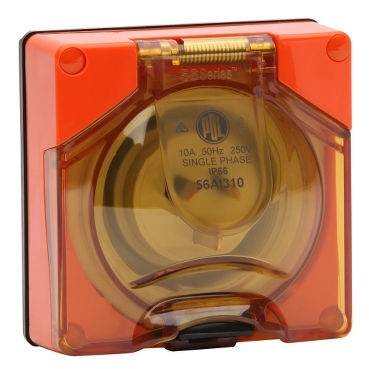

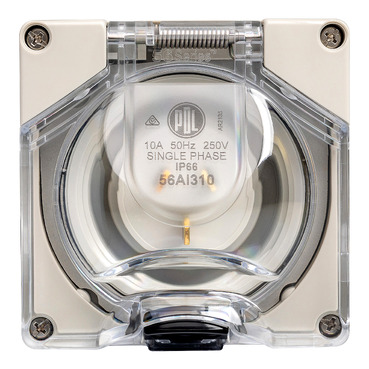

56 Series Appliance Inlet 10A 250V 1-Phase 3-Flat Pin IP66 | Chemical Resistant Orange
Item Number: PDL56AI310LERO
Datasheet
Close
Specifications
Design
| Range of product | 56 Series |
|---|---|
| Product or component type | appliance inlet |
| Colour tint | grey |
| Surface finish | gloss |
Physical
| Installation direction | vertical |
|---|---|
| Width | 95 mm |
| Height | 95 mm |
| Rated current | 10 A |
| [ue] rated operational voltage | 250 V |
| Pin number | 3 |
| Mounting mode | surface mounted |
| Fixing center | 84 x 84 mm |
| Ip degree of protection | IP66 |
| Ambient air temperature for operation | -40...55 °C |
| Quantity per set | set of 4 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1508011_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|---|
| Device composition | flat pin |
