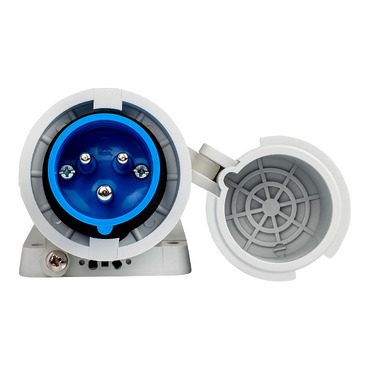

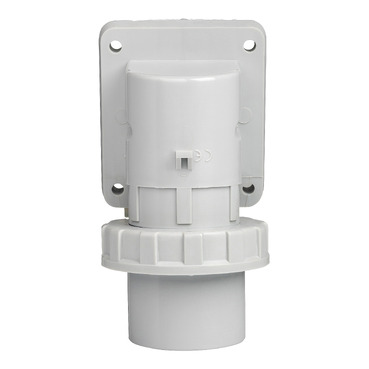

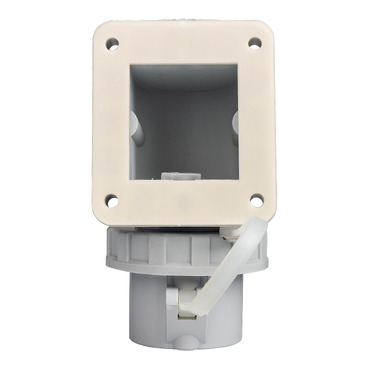

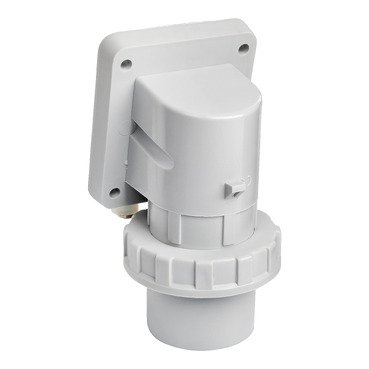

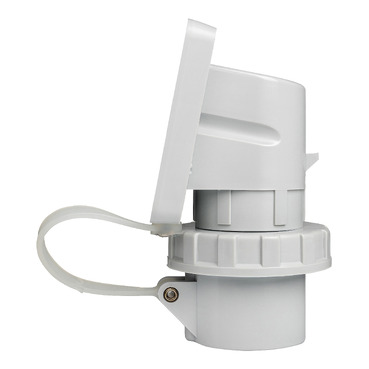

56 Series BALS Appliance Inlet 16A 230V 3-Phase 3-Round Pin IP67, Blue

Item Number: PDLBALS2638

1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175066719	-
3	BB1	9416175248306	-
24	CAR	19416175066716	-

Specifications

Design

Range of product	56 Series™
Product or component type	appliance inlet
Colour tint	grey

Physical

Rated current	16 A
[ue] rated operational voltage	230 V
Mounting mode	surface mounted
Ip degree of protection	IP67
Ambient air temperature for operation	-40...55 °C
Quantity per set	set of 3
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP121020EN_V2
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Network frequency	50 Hz
Network number of phases	3 phases
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7 cm
Package 1 width	7.5 cm
Package 1 length	14 cm
Package 1 weight	197 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.0197808109005846
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.07089172144308546
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0007331409433997228
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.008641331557165
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.42135054464184857
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	6.521397549486083
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
